Mono mixer
☑ Excellent features
☑ Wide variety of inputs
☑ Priority paging
☑ Phantom power supply

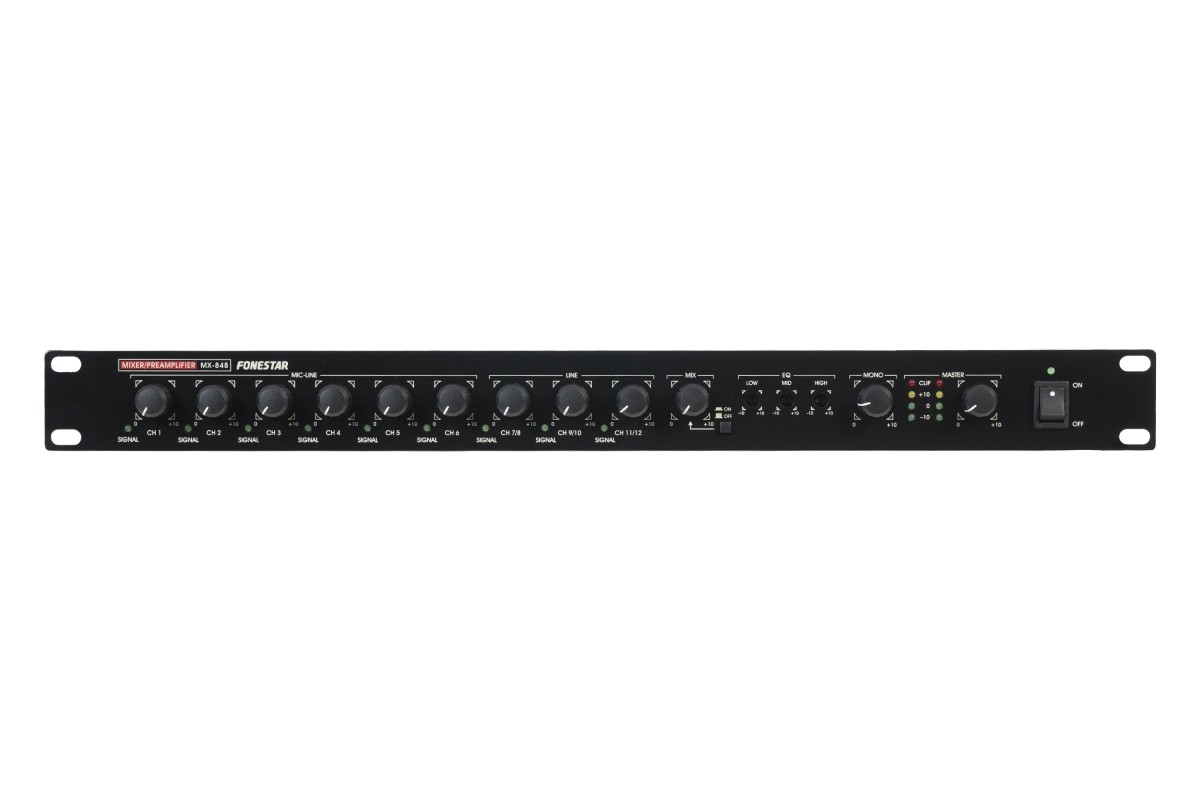

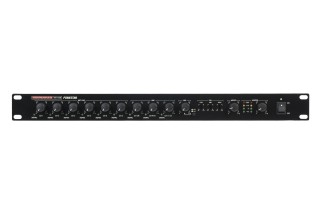

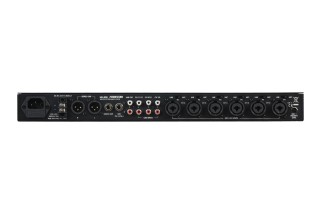

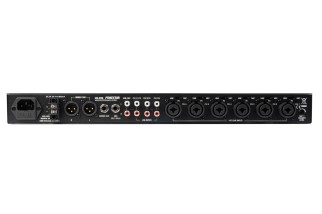

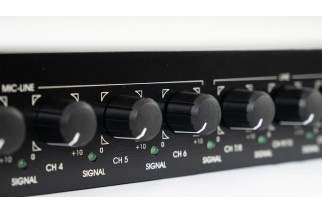

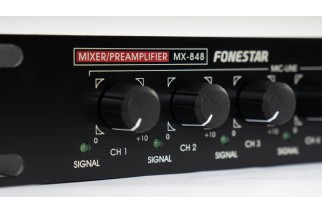

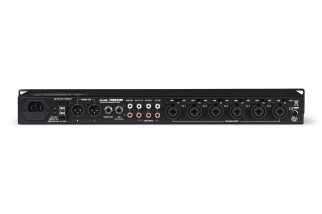

FONESTAR MX-848
604,91 €
Tasse incluse
Spedito entro 5/7 Giorni
Mono mixer
☑ Excellent features
☑ Wide variety of inputs
☑ Priority paging
☑ Phantom power supply
close
| FEATURES: | Mixer/preamplifier. |
|---|---|
| Microphone input with paging priority. | |
| Phantom power supply. | |
| LED output level indicators. | |
| INPUTS: | 6 balanced mics./lines, combo (XLR and 6.3 mm jack), 1,500 Ω 7.7 mV y 10,000 Ω 775 mV switchable |
| 3 stereo aux, 2 x RCA, 10,000 Ω 2.4 V RMS | |
| OUTPUTS: | 1 balanced stereo master, XLR 120 Ω 775 mV RMS |
| 1 balanced mono master, 6.3 mm jack, 120 Ω 775 mV RMS | |
| 1 balanced mono mix out, 6.3 mm jack 120 Ω 775 mV RMS | |
| 1 line out, 2 x RCA 120 Ω 775 mV RMS | |
| CONTROLS: | Tone: master output bass, mid and treble |
| Volume: inputs 1 to 12 and general volume (stereo and mono master) | |
| RESPONSE: | 20-22,000 Hz |
| DISTORTION: | Harmonic: < 0.05% at 1 kHz |
| S/N RATIO: | Microphones > 103 dB |
| Aux/Line > 103 dB | |
| PHANTOM: | 18 V in mics. 1 to 6, selectable |
| PRIORITY: | Mic. 1 depending on signal level, selectable |
| POWER SUPPLY: | 230 V AC, 18 W and 24 V DC, 500 mA |
| 115 v AC on request | |
| DIMENSIONS: | 483 x 44 x 220 mm depth. 1 U 19" rack |
| WEIGHT: | 3 kg |
MX-848
Scheda dati
- Canali
- 12
Riferimenti specifici
- ean13
- 8422521141710
