Uno chassis robusto e un mixer amplificato portatile che fornisce un amplificatore ad alta efficienza da 630W completo di effetti, 1-Knob Master EQ™ e un soppressore di feedback interno.
☑ 2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
☑ 2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)
☑ Powerful & High Efficiency Class-D Amplifier
☑ 12 Line Inputs (8 mono + 4 stereo)
☑ High-Z input (channel 4) to connect guitars or basses directly
☑ 1-Knob Master EQ™
☑ Onboard Feedback Suppressor
☑ Comprehensive, professional 24 different effects
☑ Metal chassis for extended operation and robustness
☑ Large handles for extreme portability and protection
☑ Universal power supply eliminates concern on power fluctuations
☑ Optional rack-mount kit available

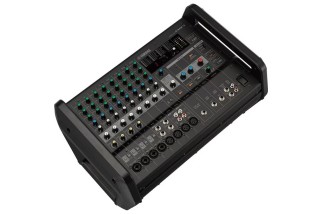

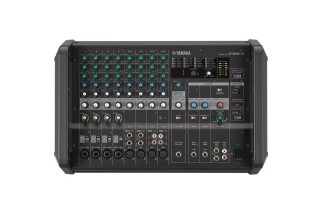

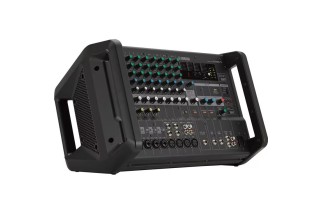

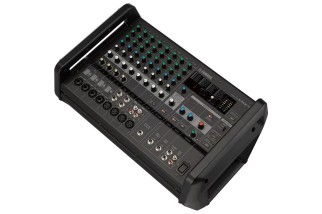

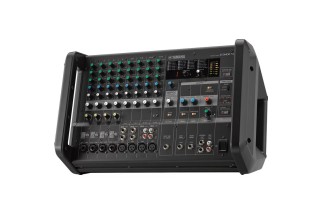

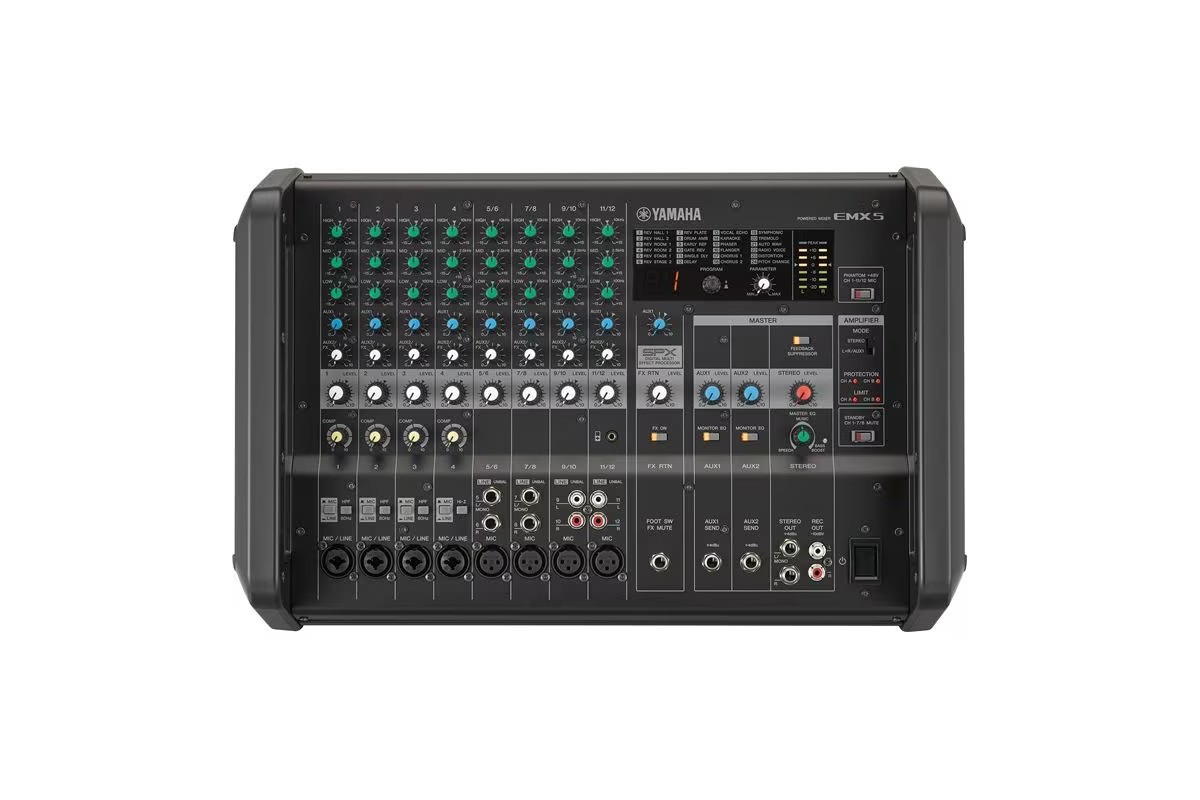

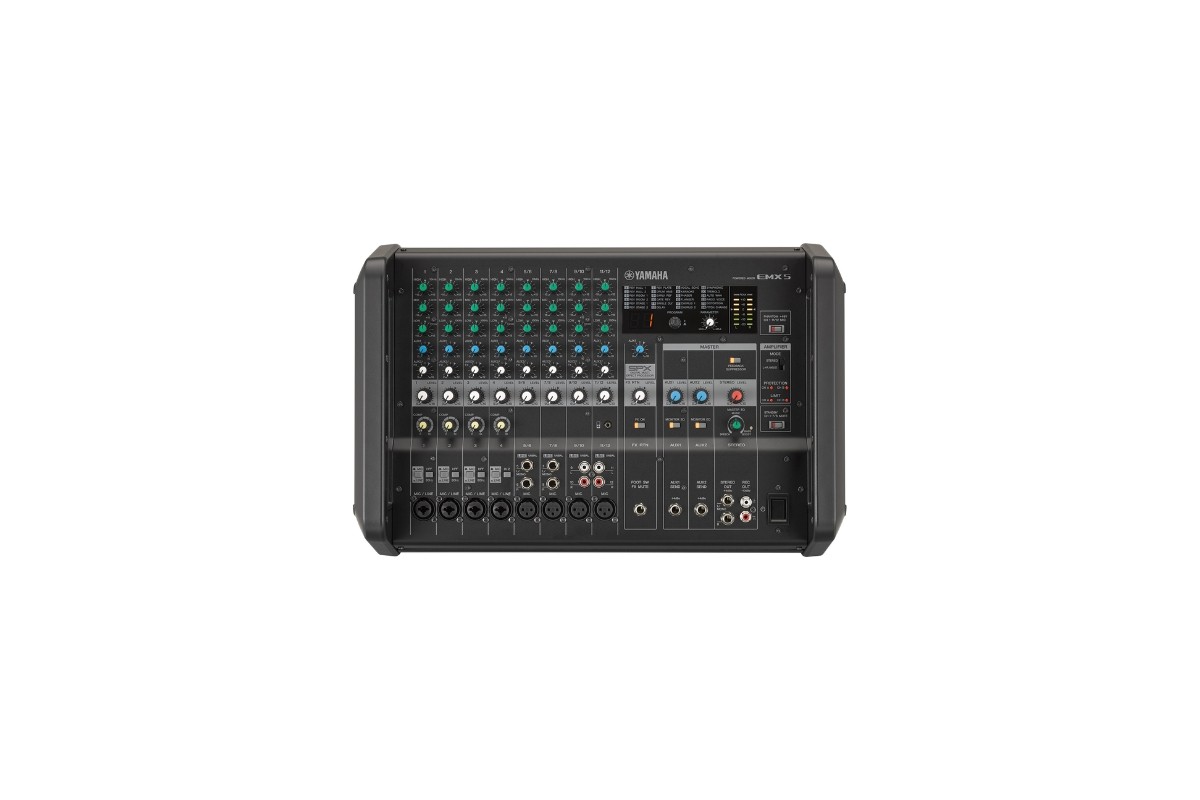

Yamaha EMX5
777,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Uno chassis robusto e un mixer amplificato portatile che fornisce un amplificatore ad alta efficienza da 630W completo di effetti, 1-Knob Master EQ™ e un soppressore di feedback interno.
☑ 2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
☑ 2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)
☑ Powerful & High Efficiency Class-D Amplifier
☑ 12 Line Inputs (8 mono + 4 stereo)
☑ High-Z input (channel 4) to connect guitars or basses directly
☑ 1-Knob Master EQ™
☑ Onboard Feedback Suppressor
☑ Comprehensive, professional 24 different effects
☑ Metal chassis for extended operation and robustness
☑ Large handles for extreme portability and protection
☑ Universal power supply eliminates concern on power fluctuations
☑ Optional rack-mount kit available
close
| Outline | I/O | Inputs | TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) |
|---|---|---|---|
| Phantom power | +48 V | ||
| Outputs | SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] | ||
| Control and others | FOOT SWITCH : Effect Mute on/off | ||
| Bus | Stereo: 1, AUX: 2 (Including FX) | ||
| Input Channel Function | PAD | 30 dB (CH1-4) | |
| Hi-Z | Supported (CH4) | ||
| HPF | 80 Hz, -12 dB/oct. (CH1–3) | ||
| COMP | 1-knob COMP (CH1–4) | ||
| EQ HIGH | 10 kHz +15 dB / -15 dB (Shelving) | ||
| EQ MID | 2.5 kHz +15 dB / -15 dB (Peaking) | ||
| EQ LOW | 100 Hz +15 dB / -15 dB (Shelving) | ||
| On-board processors | DSP | SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ | |
| On-board amplifiers | Maximum output power @4ohms | 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W | |
| Maximum output power @8ohms | 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W | ||
| Level Meter | 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK) | ||
| General specifications | Frequency response | Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz | |
| Total harmonic distortion | Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF) | ||
| Hum & noise level | Equivalent input noise | -117 dBu (Noise is measured with A-weighting filter) | |
| Residual output noise | Input to SPEAKERS : -66 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -80dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter) | ||
| Crosstalk | -85 dB (1 kHz, Measured with 1 kHz band pass filter) | ||
| Protection circuit | Load protection | DC-fault | |
| Amplifier protection | Over heat protection, Over current protection, Integral power protection | ||
| Power supply protection | Over heat protection, Over current protection | ||
| Power requirements | AC 100-240V, 50Hz/60Hz | ||
| Power consumption | 42 W (Idle) / 210 W (1/8 Power) | ||
| Dimensions | W | 465 mm (18 5/16") | |
| H | 308 mm (12 1/8") | ||
| D | 325 mm (12 13/16") | ||
| Net weight | 9.5 kg (20.9 lbs) | ||
| Accessories | Owner’s Manual, Technical Specifications, AC power cord (2.5 m) | ||
| Options | Foot switch: FC5, Rack-mount brackets: RK-EMX7 | ||
| Others | Operating Temperature : 0 to +40℃ | ||
