Console di Mixaggio 16 canali: 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Bus + 1 Stereo Bus / 4 AUX (incl. FX)
☑ Console di mixaggio 16 canali
☑ Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
☑ 4 GROUP Buses + 1 Stereo Bus
☑ 4 AUX (incl. FX)
☑ Mic preamps “D-PRE” con circuito Darlington invertito
☑ Compressori 1-Knob
☑ Effetti high-grade effects: SPX con 24 programmi
☑ Funzioni Audio USB 24-bit / 192kHz 2in / 2out
☑ Compatibile con iPad (2 o successive) attraverso il Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
☑ Cubase AI DAW software download version incluso
☑ Interruttore PAD su input mono
☑ Alimentazione phantom +48V
☑ Output XLR bilanciati
☑ Alimentazione interna universale per utilizzo world-wide
☑ Rack Mount Kit incluso
☑ Chassis in metallo
☑ Dimensioni (L×A×P): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
☑ Peso Netto: 6.8 kg (15.0 lbs.)

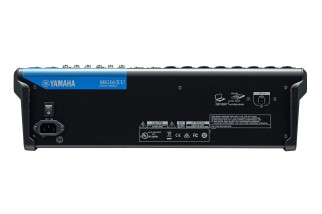

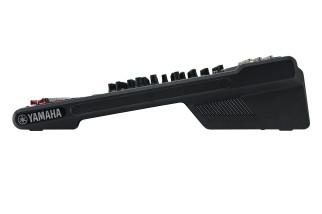

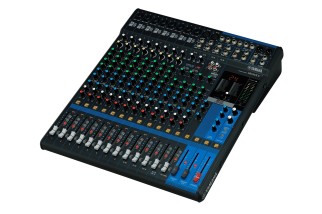

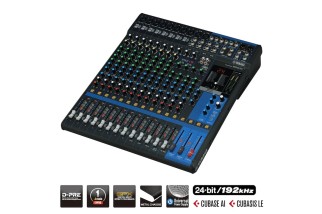

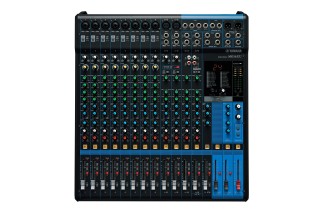

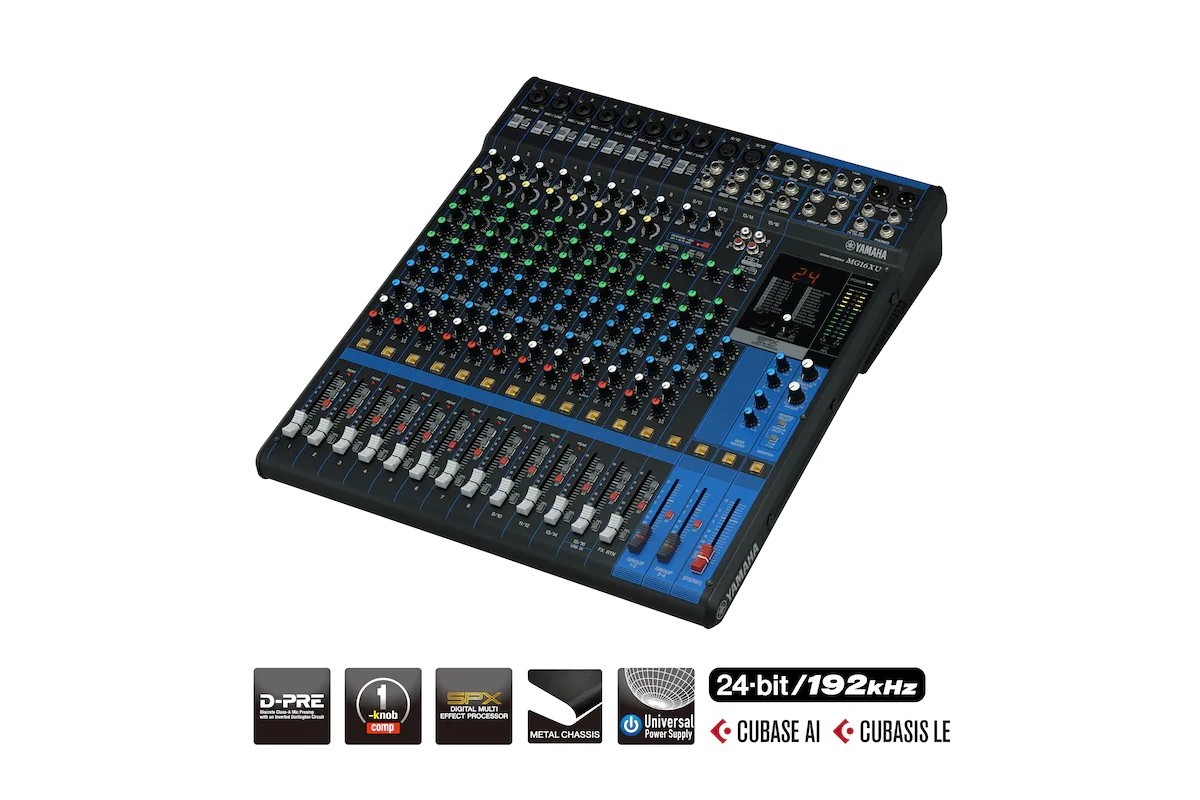

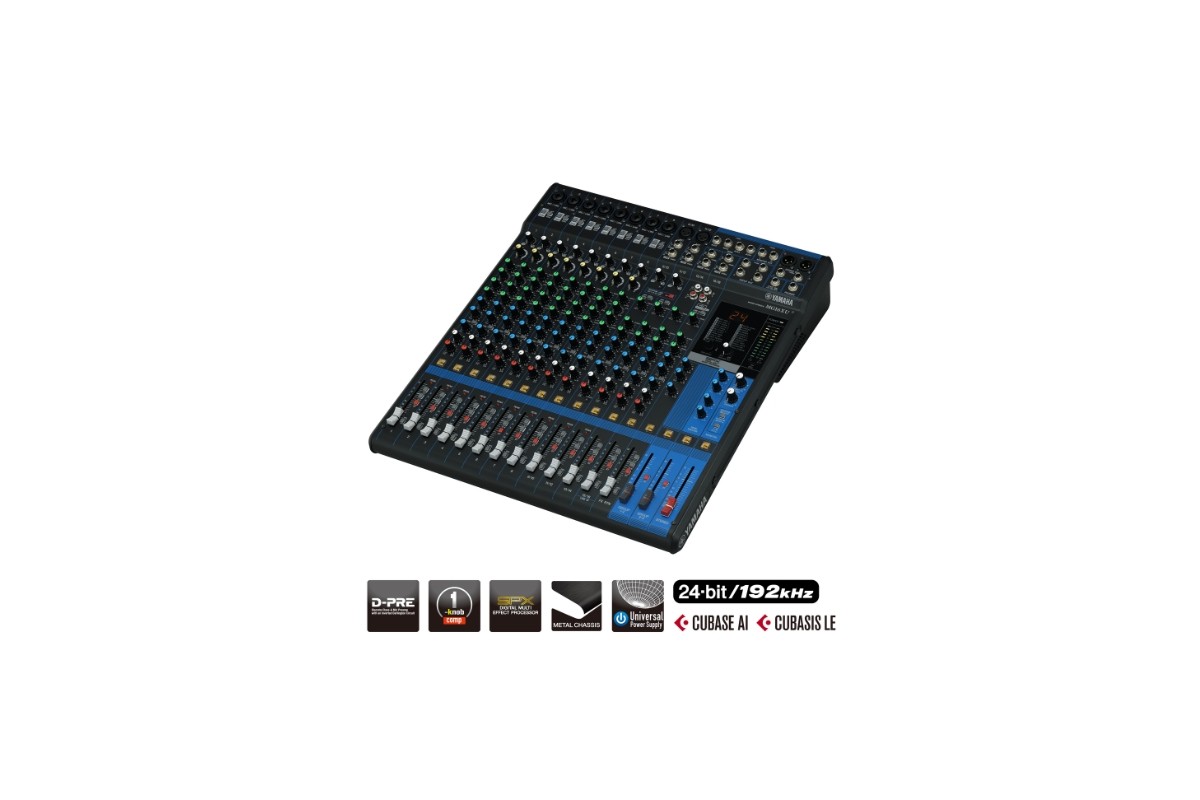

Yamaha MG16XU
665,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Console di Mixaggio 16 canali: 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Bus + 1 Stereo Bus / 4 AUX (incl. FX)
☑ Console di mixaggio 16 canali
☑ Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
☑ 4 GROUP Buses + 1 Stereo Bus
☑ 4 AUX (incl. FX)
☑ Mic preamps “D-PRE” con circuito Darlington invertito
☑ Compressori 1-Knob
☑ Effetti high-grade effects: SPX con 24 programmi
☑ Funzioni Audio USB 24-bit / 192kHz 2in / 2out
☑ Compatibile con iPad (2 o successive) attraverso il Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
☑ Cubase AI DAW software download version incluso
☑ Interruttore PAD su input mono
☑ Alimentazione phantom +48V
☑ Output XLR bilanciati
☑ Alimentazione interna universale per utilizzo world-wide
☑ Rack Mount Kit incluso
☑ Chassis in metallo
☑ Dimensioni (L×A×P): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
☑ Peso Netto: 6.8 kg (15.0 lbs.)
close
| Outline | Mixing capability | On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|---|---|---|---|
| I/O | Phantom power | +48 V | |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | ||
| Input Channels | Mono[MIC/LINE] | 8 | |
| Mono/Stereo[MIC/LINE] | 2 | ||
| Stereo[LINE] | 2 | ||
| Output Channels | STEREO OUT | 2 | |
| MONITOR OUT | 1 | ||
| PHONES | 1 | ||
| AUX SEND | 4 | ||
| GROUP OUT | 4 | ||
| Bus | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) | ||
| Input Channel Function | PAD | 26 dB (Mono) | |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | ||
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | ||
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | ||
| EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking | ||
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | ||
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | ||
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | ||
| General specifications | Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | ||
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | ||
| Crosstalk | -78 dB | ||
| Power requirements | AC 100 – 240 V, 50 / 60 Hz | ||
| Power consumption | 30 W | ||
| Dimensions | W | 444 mm (17.5") | |
| H | 130 mm (5.1") | ||
| D | 500 mm (19.7") | ||
| Net weight | 6.8 kg (15.0 lbs.) | ||
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 | ||
| Others | Operating Temperature: 0 to +40˚C | ||
MG16XU
Scheda dati
- Canali
- 16
