12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)
☑ 12-Channel Mixing Console
☑ Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
☑ 2 GROUP Buses + 1 Stereo Bus
☑ 2 AUX (incl. FX)
☑ “D-PRE” mic preamps with an inverted Darlington circuit
☑ 1-Knob compressors
☑ High-grade effects: SPX with 24 programs
☑ PAD switch on mono inputs
☑ +48V phantom power
☑ XLR balanced outputs
☑ Internal universal power supply for world-wide use
☑ Optional Rack Mount Kit RK-MG12 Available
☑ Metal chassis
☑ Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
☑ Net Weight: 4.2 kg (9.3 lbs.)

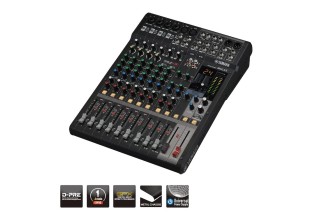

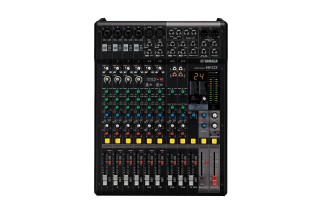

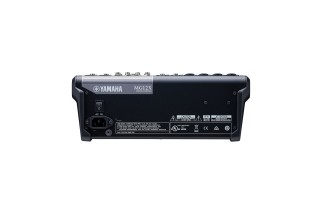

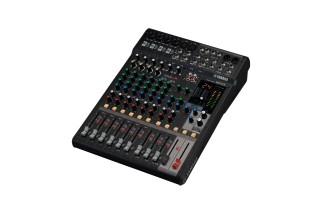

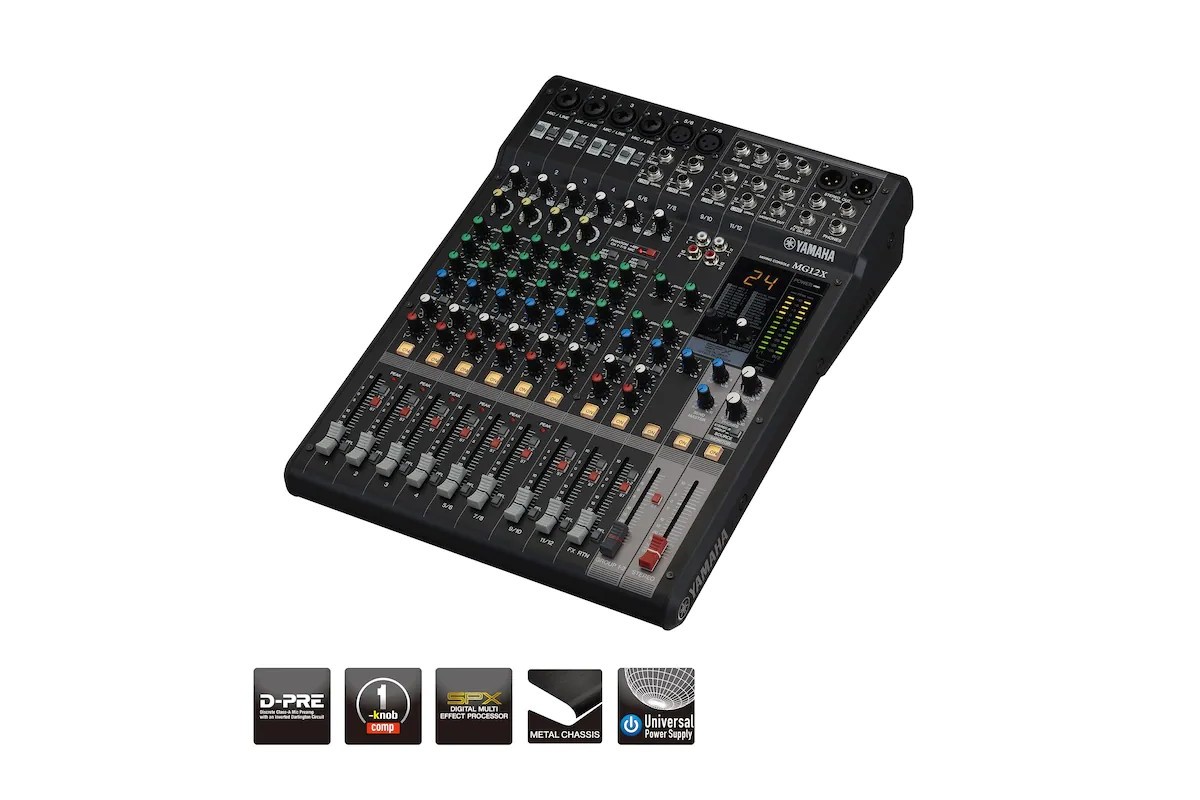

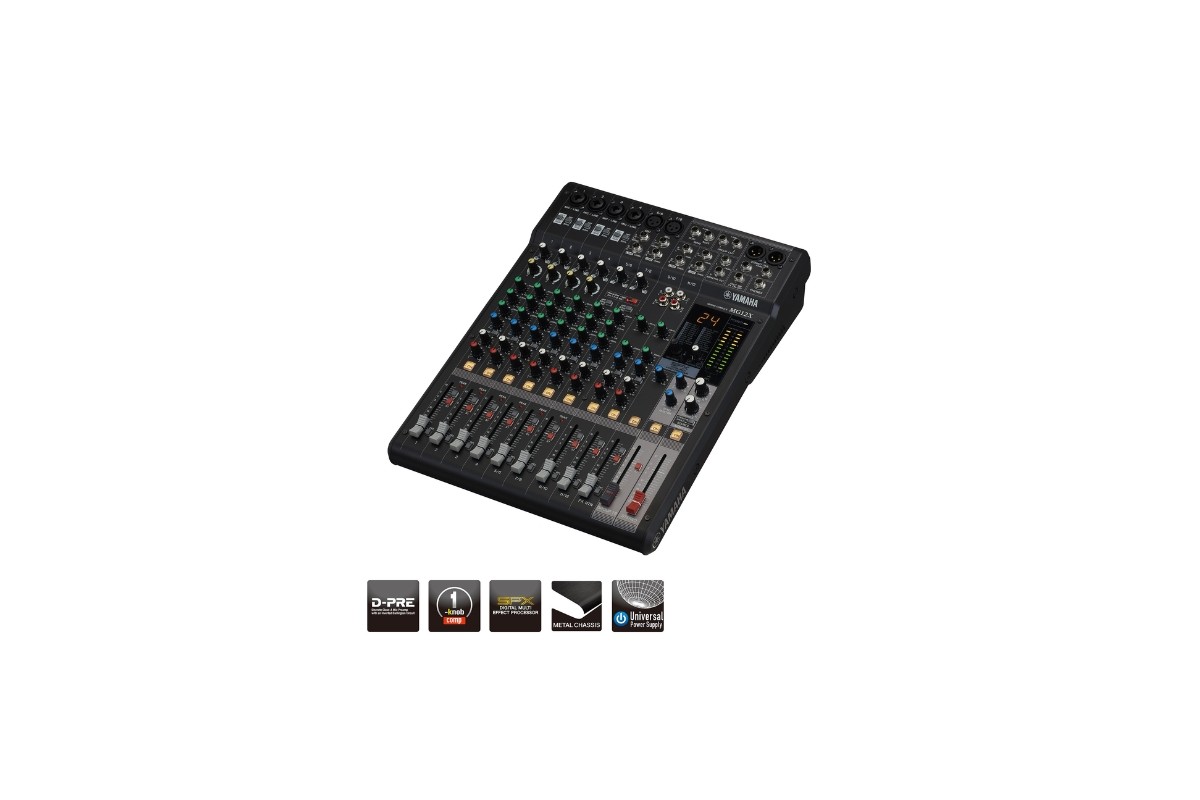

Yamaha MG12X
506,30 €
Tasse incluse
Spedito entro 5/7 Giorni
12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)
☑ 12-Channel Mixing Console
☑ Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
☑ 2 GROUP Buses + 1 Stereo Bus
☑ 2 AUX (incl. FX)
☑ “D-PRE” mic preamps with an inverted Darlington circuit
☑ 1-Knob compressors
☑ High-grade effects: SPX with 24 programs
☑ PAD switch on mono inputs
☑ +48V phantom power
☑ XLR balanced outputs
☑ Internal universal power supply for world-wide use
☑ Optional Rack Mount Kit RK-MG12 Available
☑ Metal chassis
☑ Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
☑ Net Weight: 4.2 kg (9.3 lbs.)
close
| Outline | Mixing capability | On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|---|---|---|---|
| I/O | Phantom power | +48 V | |
| Digital I/O | - | ||
| Input Channels | Mono[MIC/LINE] | 4 | |
| Mono/Stereo[MIC/LINE] | 2 | ||
| Stereo[LINE] | 2 | ||
| Output Channels | STEREO OUT | 2 | |
| MONITOR OUT | 1 | ||
| PHONES | 1 | ||
| AUX SEND | 2 | ||
| GROUP OUT | 2 | ||
| Bus | Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) | ||
| Input Channel Function | PAD | 26 dB (Mono) | |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | ||
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | ||
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | ||
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking | ||
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | ||
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | ||
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | ||
| General specifications | Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | ||
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | ||
| Crosstalk | -78 dB | ||
| Power requirements | AC 100 – 240 V, 50 / 60 Hz | ||
| Power consumption | 22 W | ||
| Dimensions | W | 308 mm (12.1") | |
| H | 118 mm (4.6") | ||
| D | 422 mm (16.6") | ||
| Net weight | 4.2 kg (9.3 lbs.) | ||
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 | ||
| Others | Operating Temperature: 0 to +40˚C | ||
MG12X
Scheda dati
- Canali
- 12
