Console di Mixaggio 10 canali: 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)
☑ 10-Channel Mixing Console
☑ Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
☑ 1 Stereo Bus
☑ 1 AUX (incl. FX)
☑ “D-PRE” mic preamps with an inverted Darlington circuit
☑ 1-Knob compressors
☑ High-grade effects: SPX with 24 programs
☑ 24-bit / 192kHz 2in / 2out USB Audio functions
☑ Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
☑ Includes Cubase AI DAW software download version
☑ Cubasis LE for iPad available at App Store
☑ PAD switch on mono inputs
☑ +48V phantom power
☑ XLR balanced outputs
☑ Metal chassis
☑ Dimensions(W×H×D): 275 mm x 110 mm x 390 mm (10.8" x4.3" x15.4")
☑ Net Weight: 3.3kg (7.3 lbs.)

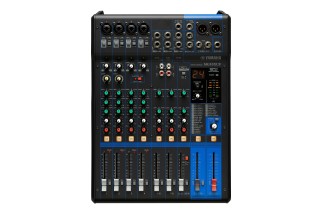

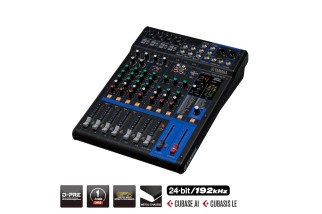

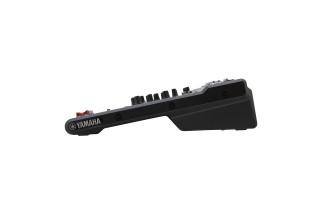

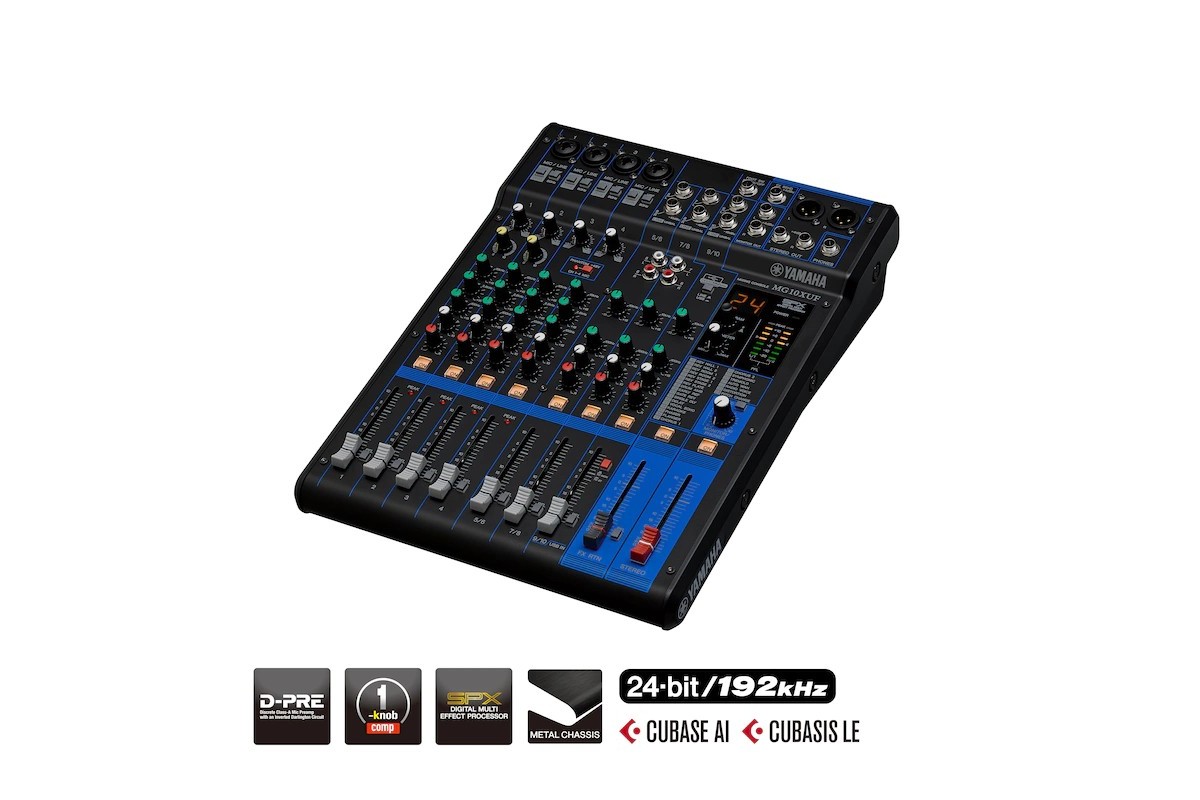

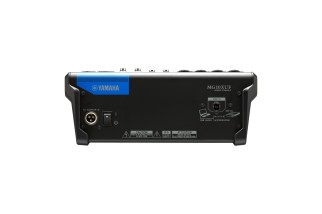

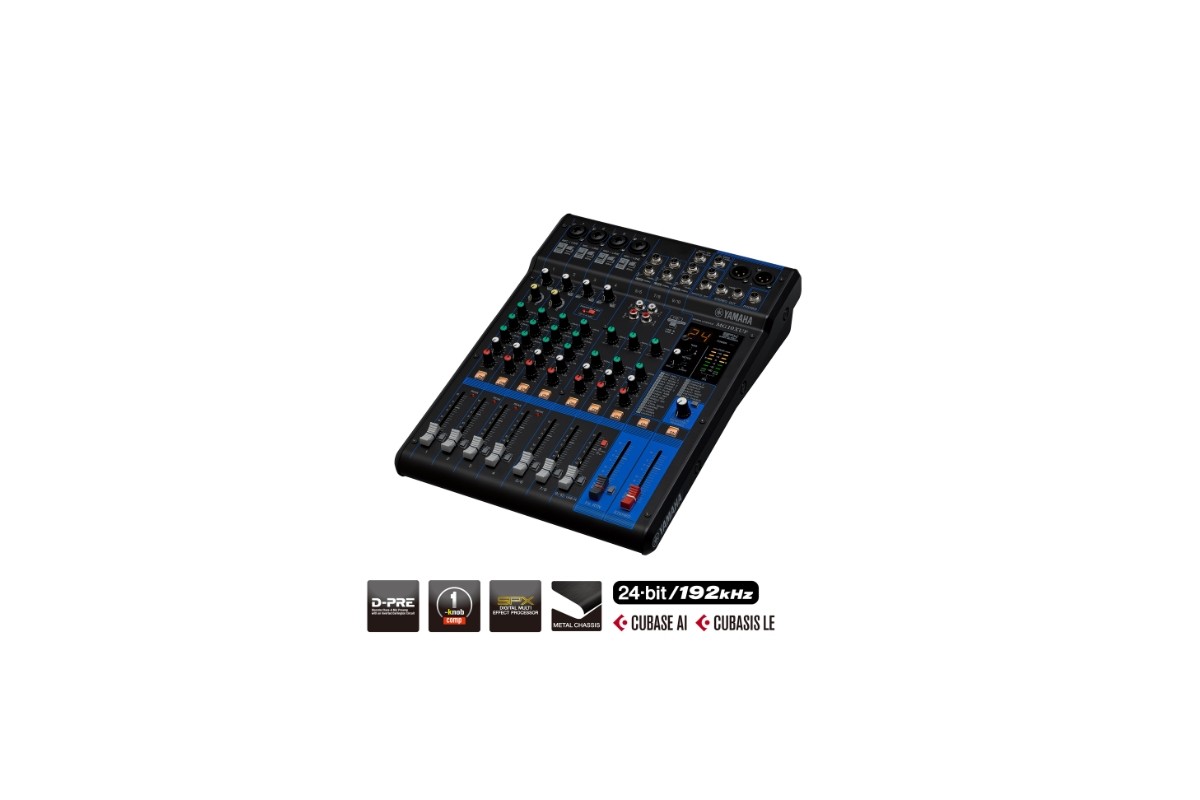

Yamaha MG10XUF
298,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Console di Mixaggio 10 canali: 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (incl. FX)
☑ 10-Channel Mixing Console
☑ Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
☑ 1 Stereo Bus
☑ 1 AUX (incl. FX)
☑ “D-PRE” mic preamps with an inverted Darlington circuit
☑ 1-Knob compressors
☑ High-grade effects: SPX with 24 programs
☑ 24-bit / 192kHz 2in / 2out USB Audio functions
☑ Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
☑ Includes Cubase AI DAW software download version
☑ Cubasis LE for iPad available at App Store
☑ PAD switch on mono inputs
☑ +48V phantom power
☑ XLR balanced outputs
☑ Metal chassis
☑ Dimensions(W×H×D): 275 mm x 110 mm x 390 mm (10.8" x4.3" x15.4")
☑ Net Weight: 3.3kg (7.3 lbs.)
close
| Outline | Mixing capability | On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|---|---|---|---|
| I/O | Phantom power | +48 V | |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | ||
| Input Channels | Mono[MIC/LINE] | 4 | |
| Mono/Stereo[MIC/LINE] | - | ||
| Stereo[LINE] | 3 | ||
| Output Channels | STEREO OUT | 2 | |
| MONITOR OUT | 1 | ||
| PHONES | 1 | ||
| AUX SEND | 1 | ||
| GROUP OUT | - | ||
| Bus | Stereo: 1, AUX[FX]: 1 | ||
| Input Channel Function | PAD | 26 dB (Mono) | |
| HPF | 80 Hz, 12 dB/oct (Mono) | ||
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec | ||
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | ||
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking | ||
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | ||
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | ||
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] | ||
| General specifications | Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | ||
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) | |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | ||
| Crosstalk | -83 dB | ||
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha | ||
| Power consumption | 22.9 W | ||
| Dimensions | W | 275 mm (10.8") | |
| H | 110 mm (4.3") | ||
| D | 390 mm (15.4") | ||
| Net weight | 3.3 kg (7.3 lbs) | ||
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5 | ||
| Others | Operating Temperature: 0 to +40˚C | ||
MG10XUF
Scheda dati
- Canali
- 10
