Un gran numero di entrate e controlli manuali in una console compatta che può gestire un'ampia gamma di situazioni.
☑ 25 motor faders (24 channels + 1 master)
☑ 48 input mixing channels (40 mono + 2 stereo + 2 return)
☑ 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
☑ 8 DCA groups with Roll-out
☑ 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
☑ 16 analog XLR outputs
☑ 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
☑ 8 Effects and 10 GEQ
☑ 1 expansion slot for NY64-D audio interface card

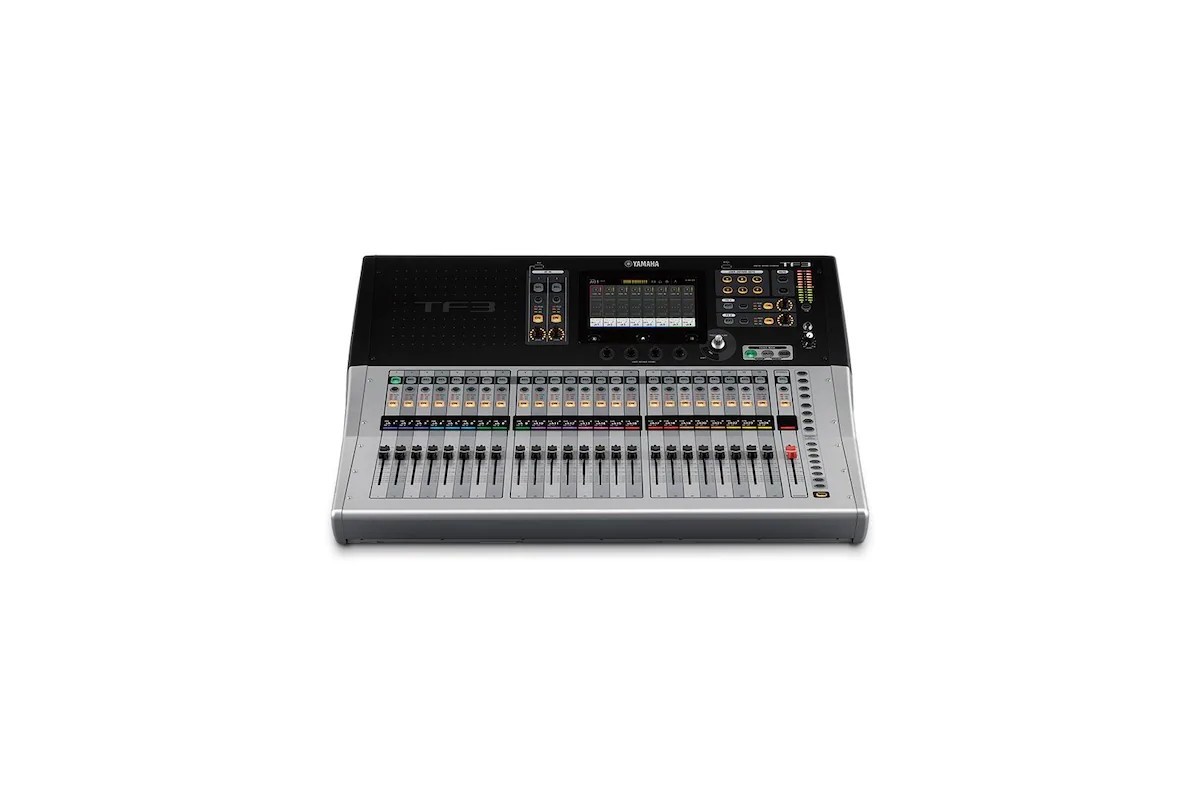

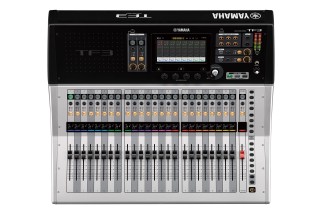

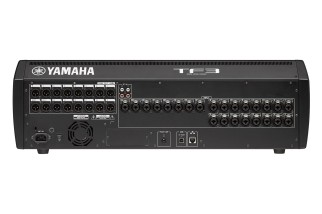

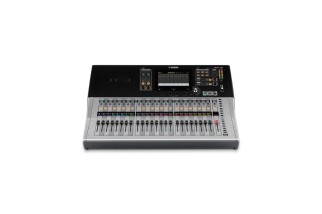

Yamaha TF3
4.099,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Un gran numero di entrate e controlli manuali in una console compatta che può gestire un'ampia gamma di situazioni.
☑ 25 motor faders (24 channels + 1 master)
☑ 48 input mixing channels (40 mono + 2 stereo + 2 return)
☑ 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
☑ 8 DCA groups with Roll-out
☑ 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
☑ 16 analog XLR outputs
☑ 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
☑ 8 Effects and 10 GEQ
☑ 1 expansion slot for NY64-D audio interface card
close
| Outline | Fader Configuration | 24 + 1 (Master) | |
|---|---|---|---|
| Mixing Capacity | Input Channels | 48 (40 mono + 2 stereo + 2 return) | |
| Aux Buses | 20 (8 mono + 6 stereo) | ||
| Stereo Buses | 1 | ||
| Sub Buses | 1 | ||
| Input channel functions | 8 DCA Groups | ||
| I/O | Inputs | 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) | |
| Outputs | 16 (XLR) | ||
| Expansion slots | 1 | ||
| On-board processors | DSP | 8 Effects + 10 GEQ | |
| General specifications | Sampling frequency rate | Internal | 48 kHz |
| Signal delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | ||
| Fader | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | ||
| Total harmonic distortion | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | ||
| Frequency response | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | ||
| Dynamic range | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | ||
| Hum & noise level | Equivalent input noise | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) | |
| Residual output noise | –85 dBu, ST master off (Measured with an A-Weight filter) | ||
| Crosstalk | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | ||
| Power requirements | 100–240 V 50/60 Hz | ||
| Power consumption | 110 W | ||
| Dimensions | W | 716 mm (28.2in) | |
| H | 225 mm (8.9in) | ||
| D | 599 mm (23.6in) | ||
| Net weight | 17.0 kg (37.5lb) | ||
| Accessories | Quick Guide, Power Cord, Nuendo Live | ||
| Options | Expansion Card, Foot Switch (FC5) | ||
| Others | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C | ||
TF3
Scheda dati
- Canali
- 25
