TF-RACK è una versione compatta formato rack della serie TF, con gli stessi livelli di prestazioni e un'operatività rivoluzionaria.
☑ Mixer digitale integrato formato rack
☑ 16 mic/line (XLR/TRS combo) + 1 linea stereo (RCA pin)
☑ 16 (8 XLR + 8 TRS phone)
☑ 40 (32 mono + 2 stereo + 2 return)
☑ Bus Aux: 20 (8 mono + 6 stereo)
☑ Bus Stereo: 1
☑ Bus Sub: 1
☑ 480 mm (18-7/8 in) x 132 mm (5-1/4 in) x 409 mm (16-1/8 in)
☑ Peso netto: 9,2 kg (20,3 lb)

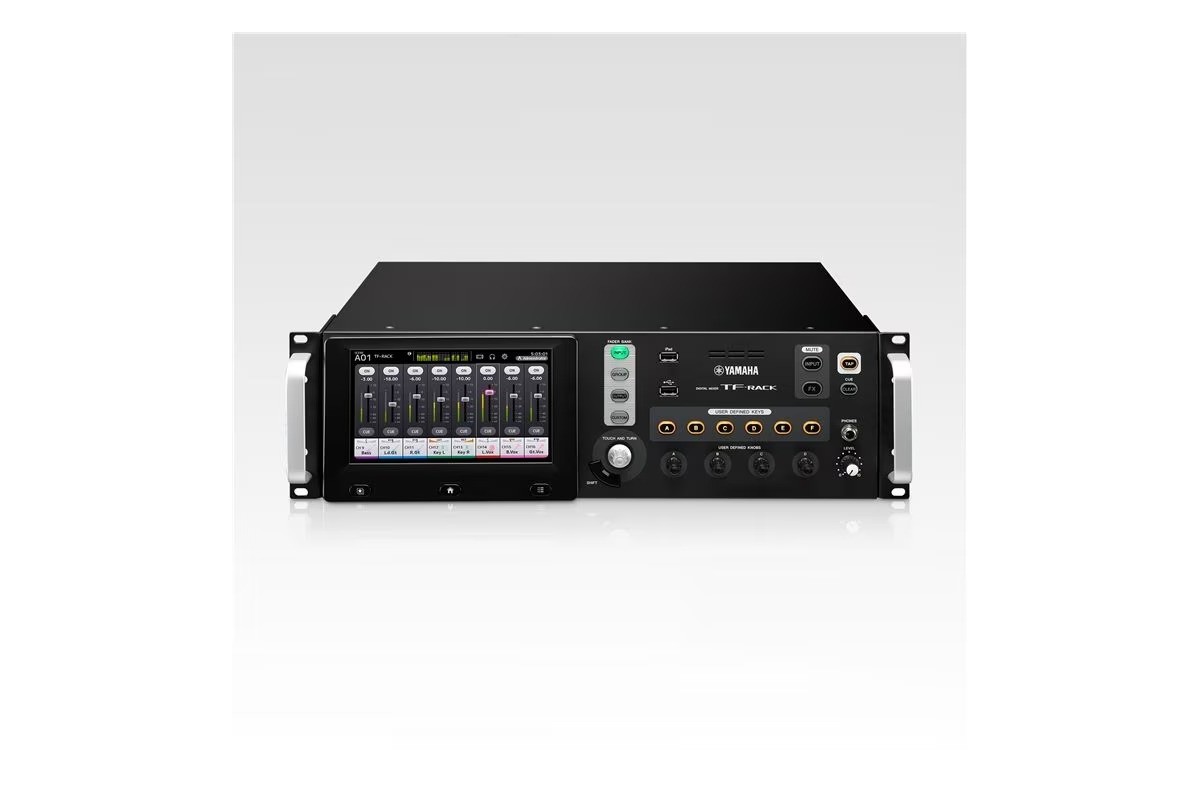

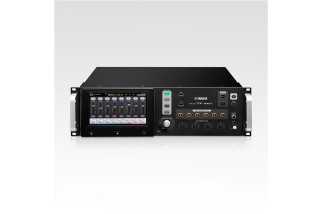

Yamaha TF-RACK
2.868,00 €
Tasse incluse
Spedito entro 5/7 Giorni
TF-RACK è una versione compatta formato rack della serie TF, con gli stessi livelli di prestazioni e un'operatività rivoluzionaria.
☑ Mixer digitale integrato formato rack
☑ 16 mic/line (XLR/TRS combo) + 1 linea stereo (RCA pin)
☑ 16 (8 XLR + 8 TRS phone)
☑ 40 (32 mono + 2 stereo + 2 return)
☑ Bus Aux: 20 (8 mono + 6 stereo)
☑ Bus Stereo: 1
☑ Bus Sub: 1
☑ 480 mm (18-7/8 in) x 132 mm (5-1/4 in) x 409 mm (16-1/8 in)
☑ Peso netto: 9,2 kg (20,3 lb)
close
| Outline | Mixing Capacity | Input Channels | 40 (32 mono + 2 stereo + 2 return) |
|---|---|---|---|
| Aux Buses | 20 (8 mono + 6 stereo) | ||
| Stereo Buses | 1 | ||
| Sub Buses | 1 | ||
| Input channel functions | 8 DCA Groups | ||
| I/O | Inputs | 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin) | |
| Outputs | 16 (8 XLR + 8 TRS phone) | ||
| Expansion slots | 1 (for NY64-D) | ||
| On-board processors | DSP | 8 Effects + 10 GEQ | |
| General specifications | Sampling frequency rate | Internal | 48 kHz |
| Signal delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | ||
| Fader | Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | ||
| Total harmonic distortion | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | ||
| Frequency response | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | ||
| Dynamic range | 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min. | ||
| Hum & noise level | Equivalent input noise | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) | |
| Residual output noise | –85 dBu, ST master off (Measured with an A-Weight filter) | ||
| Crosstalk | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | ||
| Power requirements | 100–240 V 50/60 Hz | ||
| Power consumption | 85 W | ||
| Dimensions | W | 480 mm (18-7/8 in) | |
| H | 132 mm (5-1/4 in) | ||
| D | 409 mm (16-1/8 in) | ||
| Net weight | 9.2 kg (20.3lb) | ||
| Accessories | Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4) | ||
| Options | Audio Interface Card (NY-64D), Foot Switch (FC5) | ||
| Others | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C | ||
TF-RACK
Scheda dati
- Canali
- 16
