Il DM7 è una versatile console di missaggio digitale equipaggiata con Dante, con una qualità sonora senza pari, una facilità di funzionamento e un'elevata affidabilità che la rendono perfetta per un'ampia gamma di applicazioni. Il DM7 è configurato con 24 + 4 fader e uno schermo multi-touch da 2 x 12" + 1 x 7".
☑ Canali di missaggio in ingresso: 120 mono
☑ Bus: 48 Mix + 12 Matrix + 2 Stereo
☑ Display: 12.schermo multi-touch da 1" x 2, schermo multi-touch da 7" x 1
☑ Fader: 28 (12 + 12 + 4)
☑ I/O analogico: 32 ingressi / 16 uscite
☑ Dante: 144 in / 144 out
☑ AES/EBU: 2 in / 2 out (con SRC)
☑ Slot: Slot PY x 1
☑ Interfaccia audio USB: 18 ingressi / 18 uscite
☑ Alimentazione: Alimentazione ridondante integrata
☑ Consumo di energia: 240 W
☑ Dimensioni (L×A×P): 793 mm x 324 mm x 564 mm (31.3"" x 12.8"" x 22.2"")
☑ Peso netto: 23,5 kg (51,8 lb)

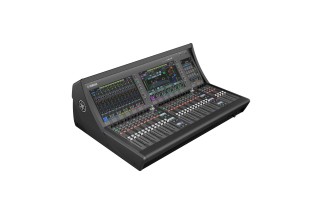

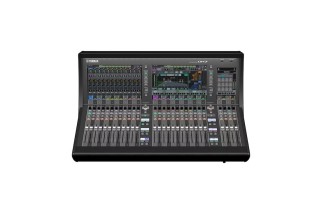

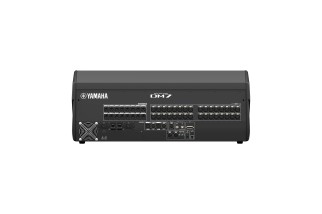

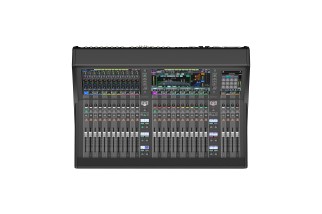

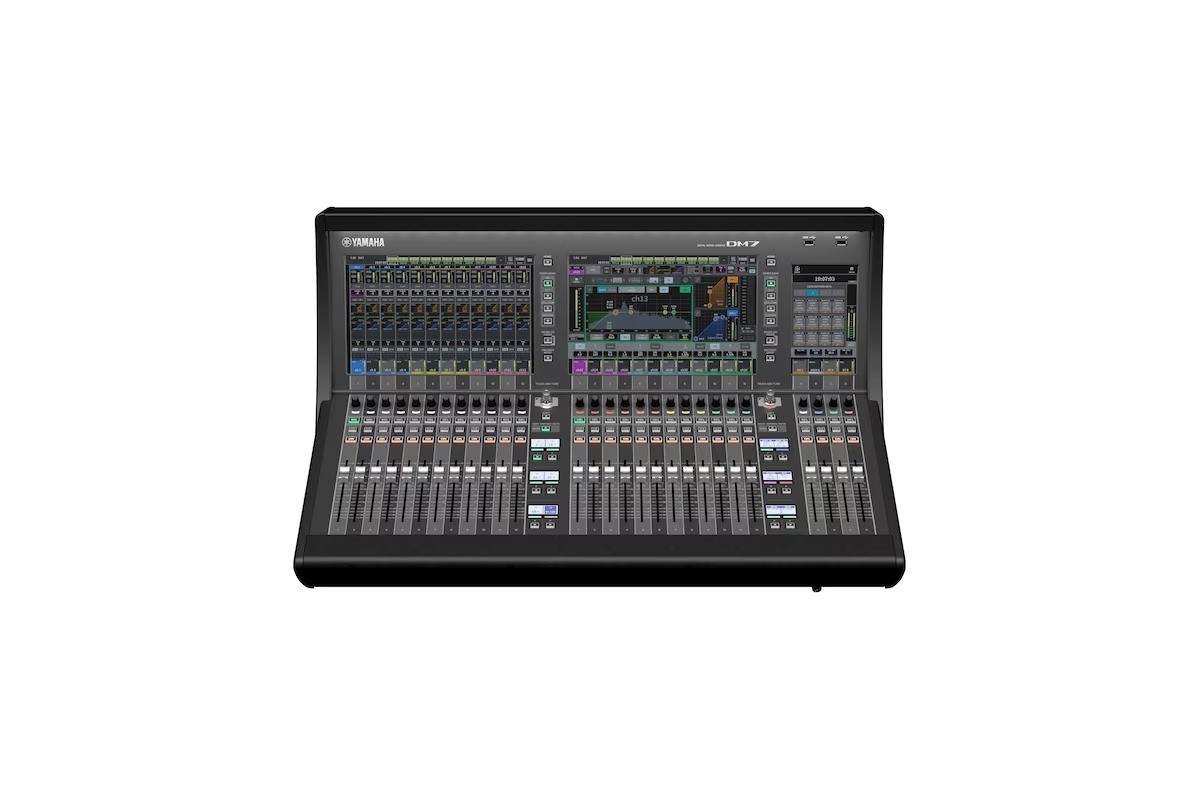

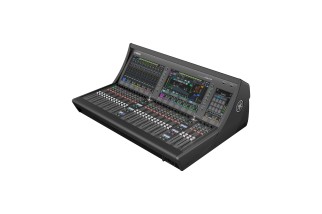

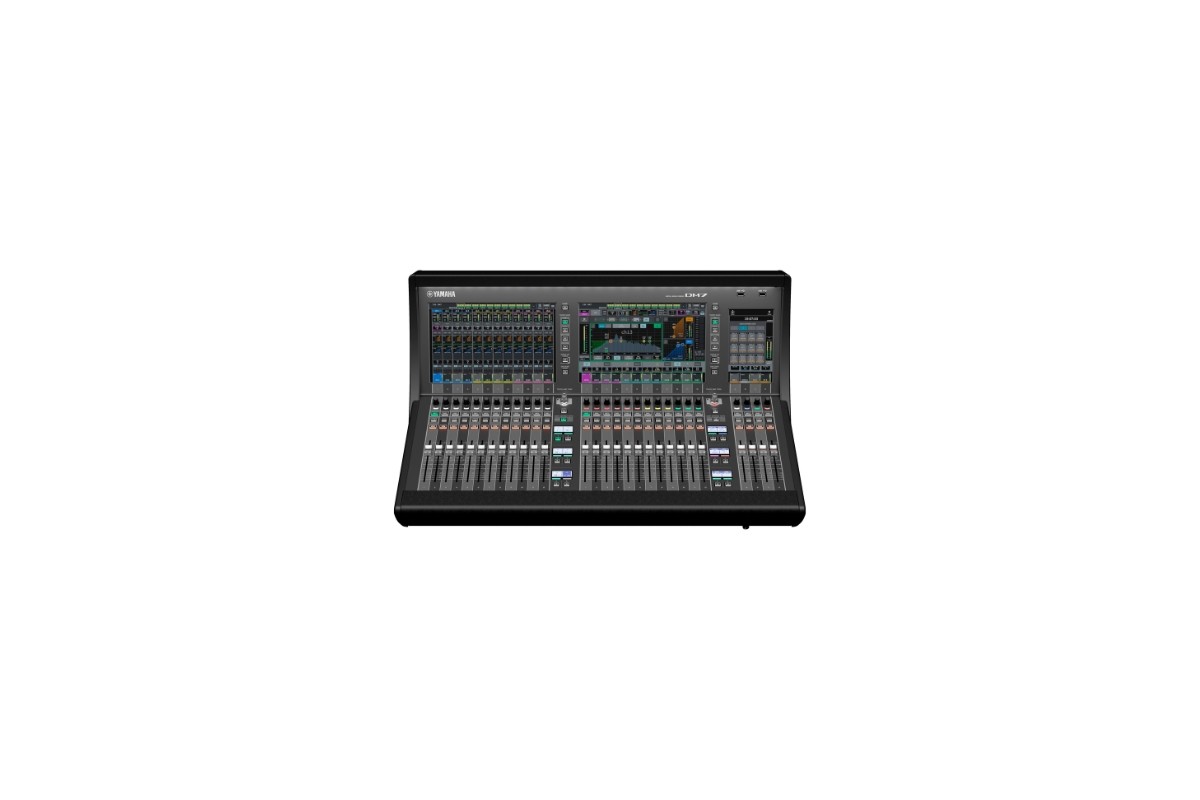

Yamaha DM7
33.330,40 €
Tasse incluse
Spedito entro 5/7 Giorni
Il DM7 è una versatile console di missaggio digitale equipaggiata con Dante, con una qualità sonora senza pari, una facilità di funzionamento e un'elevata affidabilità che la rendono perfetta per un'ampia gamma di applicazioni. Il DM7 è configurato con 24 + 4 fader e uno schermo multi-touch da 2 x 12" + 1 x 7".
☑ Canali di missaggio in ingresso: 120 mono
☑ Bus: 48 Mix + 12 Matrix + 2 Stereo
☑ Display: 12.schermo multi-touch da 1" x 2, schermo multi-touch da 7" x 1
☑ Fader: 28 (12 + 12 + 4)
☑ I/O analogico: 32 ingressi / 16 uscite
☑ Dante: 144 in / 144 out
☑ AES/EBU: 2 in / 2 out (con SRC)
☑ Slot: Slot PY x 1
☑ Interfaccia audio USB: 18 ingressi / 18 uscite
☑ Alimentazione: Alimentazione ridondante integrata
☑ Consumo di energia: 240 W
☑ Dimensioni (L×A×P): 793 mm x 324 mm x 564 mm (31.3"" x 12.8"" x 22.2"")
☑ Peso netto: 23,5 kg (51,8 lb)
close
| Outline | Mixing Capacity | Input Channels | 120 mono |
|---|---|---|---|
| Mix Buses | 48 | ||
| Matrices | 12 (Input to Matrix supported) | ||
| Stereo Buses | 2 | ||
| Mono Buses | 1 (Stereo B can be changed) | ||
| Cue Buses | 2 | ||
| General specifications | I/O Connectors | Analog Input | 32 |
| Analog Output | 16 | ||
| Dante | Primary / Secondary | ||
| AES/EBU Input | 2 (4ch) with SRC | ||
| AES/EBU Output | 2 (4ch) with SRC | ||
| Expansion Slot (PY Slot) | 1 | ||
| Word Clock I/O | In / Out | ||
| MIDI | No (MIDI protocol supported on USB to HOST) | ||
| GPI | 5 in / 5 out | ||
| USB TO DEVICE | 2 (File Save / Load, 2 Track Rec / Play) | ||
| USB TO HOST | 1 (USB Type-C, USB2.0) | ||
| Ethernet | Yes | ||
| Meter Bridge | On screen | ||
| Lamp | 0 (Bulit-in LED Strip Light) | ||
| Video Out | No | ||
| TC In | Yes | ||
| Phones | 1 | ||
| AC | 2 (V-Lock Type) | ||
| External Redundant Power Supply | Built-in dual power supply | ||
| Scene Memory | Number of Scenes | 500 | |
| Recall Safe | Yes | ||
| Focus Recall | Yes | ||
| Fade Time | Yes | ||
| Selective Load / Save | Yes | ||
| Global Paste | Yes | ||
| Event List | No | ||
| Overlay | No | ||
| Isolate | No | ||
| Tactile Control Keys | No | ||
| Input Channel Functions | Input A/B | Yes | |
| Gain Compensation | Yes | ||
| Digital Gain | Yes (-96 dB to +24 dB) | ||
| Attenuator | Yes (-96 dB to +24 dB) | ||
| HPF | 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable | ||
| PEQ | 4 Band Full PEQ (4 algorithms, RTA overlay supported) | ||
| LPF | 20 Hz to 20 kHz, -6/-12 dB/oct | ||
| Dynamics 1 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser | ||
| Dynamics 2 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | ||
| Input Delay | Yes (0 ms to 1,000 ms) | ||
| Pan | Center Nominal / LR Nominal | ||
| DCA Group | 24 (Output DCA supported) | ||
| DCA Rollout | Yes | ||
| MUTE Group | 12 | ||
| Number of Inserts | 4 slots on 1 insert point | ||
| Dan Dugan Automixer | Yes (Up to 64ch) | ||
| Direct Out | Yes | ||
| Output Channel Functions | PEQ | 8 Band Full PEQ | |
| GEQ | Virtual Rack (EQ Rack) | ||
| Dynamics 1 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | ||
| Output Channel Delay | Yes (0 ms to 1,000 ms) | ||
| MUTE Group | 12 | ||
| Number of Inserts | 4 slots on 1 insert point | ||
| Premium Rack | Number of DSP Resources | 64 | |
| Mountable Plug-ins | RND Portico5033 / RND Portico5043 / Portico 5045 / U76 / Opt-2A / Comp276 / Buss Comp 369 / MBC4 / DaNSe / EQ-1A / Equalizer601 / Dynamic EQ / Dynamic EQ4 / REV-X / OpenDeck / Analog Delay / Max100 / Vintage Phaser / Dual Phaser / HQ.Pitch | ||
| Effect Rack | Number of DSP Resources | 16 | |
| Number of Effect Types | 43 | ||
| EQ Rack | Number of DSP Resources | 32 | |
| Mountable Devices | 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported) | ||
| Dante | Number of I/O Channels | 144 in / 144 out | |
| Number of I/O devices that can be discovered from the console | 127 *1 | ||
| Number of I/O devices that can be mounted | 24 | ||
| Number of I/O devices with HA remote control | 24 | ||
| Dante Patch from Console | Yes | ||
| USB to Host | Number of Audio I/O Channels | 18 in / 18 out | |
| USB MIDI | Yes | ||
| Monitor | Solo Mode | Yes | |
| Oscillator | Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise | ||
| Other Functions | Port to Port | Yes | |
| Timecode Reader/Display | Yes | ||
| Timecode Chase | No | ||
| GPI | Yes (5 in / 5 out) | ||
| MIDI | Yes (USB MIDI) | ||
| OSC Server | Yes | ||
| DAW Remote | Yes | ||
| Nuendo Live: Control Integration | Yes | ||
| Virtual Soundcheck | Yes | ||
| Wireless Mic Monitoring | Yes | ||
| RTA | Yes | ||
| Delay Compensation | Yes | ||
| Output Port Delay | Yes (Up to 20 ports) | ||
| Sub In | Yes | ||
| User Levels | Yes | ||
| Channel Link | Yes | ||
| Temporary Channel Link | Yes | ||
| Multi Language Channel Names | Yes | ||
| Mix/Matrix to Input | Yes | ||
| Split Mode | Yes | ||
| Assist | Yes (HA / Naming / Fader) | ||
| User Interface | Displays | 12.1” multi-touch x 2, 7” multi-touch x 1 | |
| Faders | 24 + 4 | ||
| Channel / Screen Encoders | Yes | ||
| Channel Name / Color Displays | No (on-screen) | ||
| Custom Fader Banks | Yes | ||
| Shift Keys | Yes | ||
| User Defined Keys | Surface: 12 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks) | ||
| User Defined Knobs | Yes (by 4 encoders below the Utility screen) | ||
| Touch and Turn Knobs | Yes | ||
| Monitor Level Knobs | No | ||
| Arm Rest | Yes | ||
| Rack Mountable | No | ||
| Software | Editor | DM7 Editor (Win/Mac) | |
| StageMix | DM7 StageMix | ||
| MonitorMix | Yes | ||
| Console File Converter | Yes | ||
| ProVisionaire Control/Touch | Yes | ||
| Software Package | Broadcast Package, Theatre Package | ||
| Dimensions | W | 793 mm (31.3") | |
| H | 324 mm (12.8") *including the rubber feet | ||
| D | 564 mm (22.2") | ||
| Net weight | 23.5 kg (51.8 lb) | ||
| Included Accessories | Owner’s Manual, AC power cords, Dust cover, Cable hook (for USB TO HOST), Nuendo Live, VST Rack Elements | ||
| Accessories | - | ||
