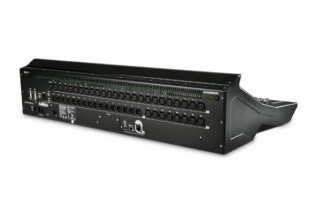

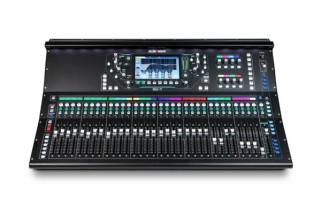

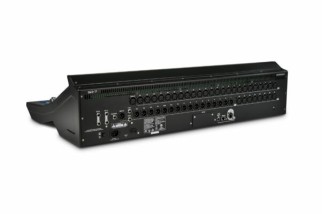

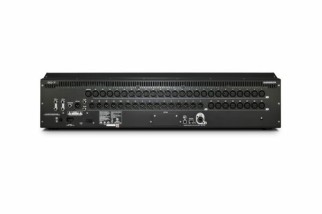

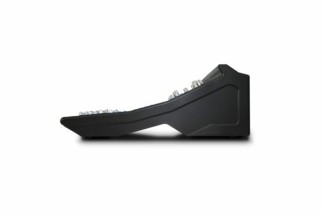

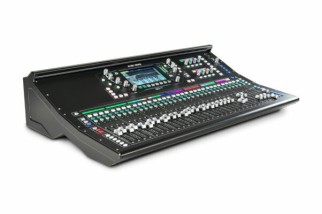

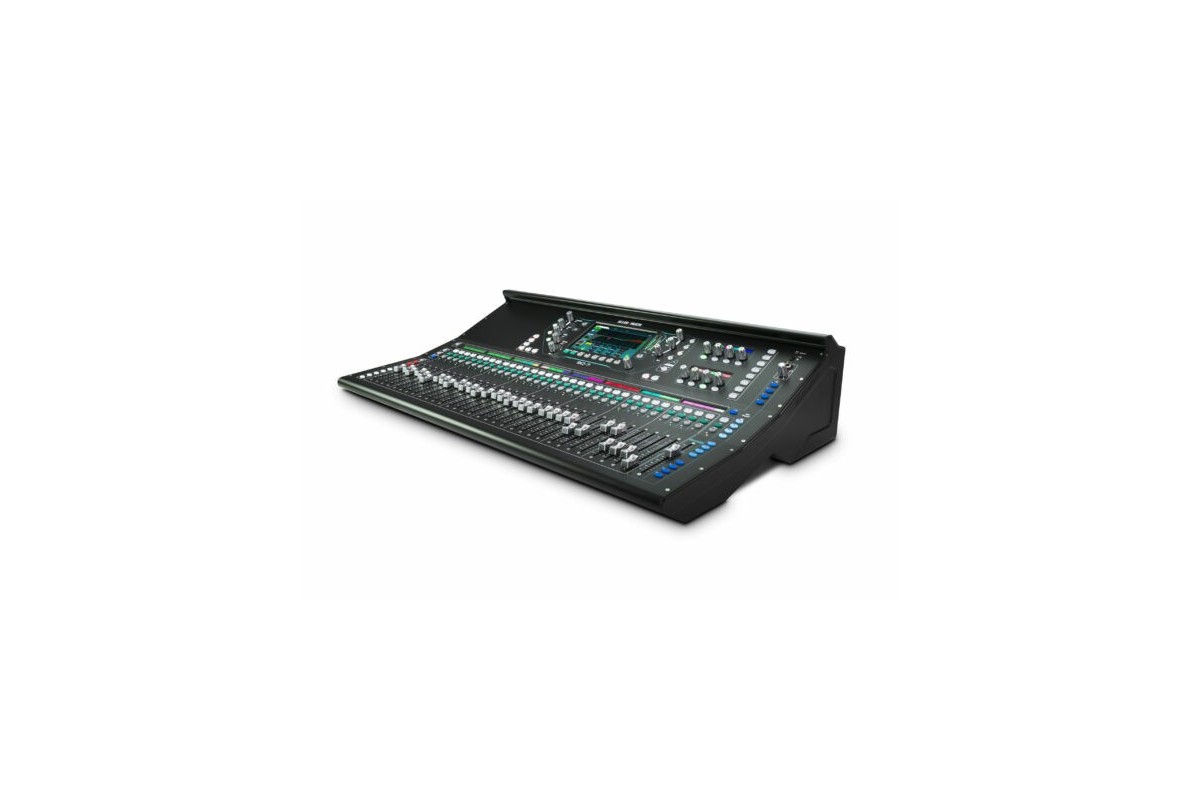

SQ-7

Overview
• Compact Digital Mixer for Live, Studio and Installation
• 48 Input Channels
• 32 Local Mic Inputs (XLR)
• 2 ¼” Stereo Inputs (TRS)
• 1 3.5mm Stereo Input
• 36 Total Busses
• 12 Stereo Mix (Aux or Group) + Main
• PAFL Bus
• 18 Assignable Local Outputs (16 XLR + 2 ¼” TRS)
• AES Digital Output
• Dedicated Talkback mic input (XLR)
• ¼” TRS Headphone out with dedicated control
• SLink EtherCON connection for remote audio using
dSnake/ME, DX or GigaACE/GX protocol (128x128
channels)
• I/O Port for Option Card (including 3rd party protocols –
Dante/Waves)
• 8 Mute Groups
• 8 DCA Groups
• 8 Stereo FX with dedicated FX Returns
• DEEP Processing Ready
• RackFX Effects suite
• 7" colour touchscreen
• 16 Assignable SoftKeys
• 8 Assignable Soft Rotaries
• Dedicated physical controls for channel processing
(Gain, HPF Frequency, Gate Threshold, Compressor
Threshold, Pan, EQ Gain/Frequency/Width)
• 32+1 Faders with 6 Layers for 192 assignable Channel
Strips
• Motorised faders for sends on faders, GEQ fader flip
and mix recall
• 32 Backlit LCD Channel Strip displays
• Chromatic Channel Metering
• Integrated Surface Illumination
• Single/Dual Footswitch Control
• Input channel pairs switchable mono/stereo
• Patchable Insert points
• Input processing – Trim, HPF, Gate, PEQ, Compressor,
Delay
• Output processing – Graphic EQ, PEQ, Compressor,
Delay
• DEEP Automatic Mic Mixing
• 2 31/61 Band Real Time Analysers
• Quick copy/paste/reset for parameters
• User Permissions to restrict operator access
• 300 Scene memories per show
• Channel Safes, Global and per Scene Recall Filters
• FX, processing and channel Libraries
• SQ-Drive for stereo and multitrack recording/playback
direct to USB drive
• USB transfer of Scenes, Libraries, Shows
• 32x32 channel USB streaming to/from Mac/PC
• MIDI via USB or TCP/IP, including DAW control options

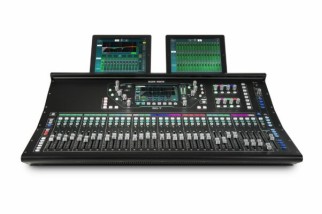

• Remote mixing apps for iPad, Android, Mac and PC
• Compatible with ME personal monitoring range
