Bluetooth®/USB/FM player with recorder and mixer function.
☑ Player, recorder and mixer in one device
☑ Great connectivity with audio inputs/outputs
☑ Compact size 1 U rack 19”
☑ User-friendly and intuitive
☑ Remote control and brackets for 19" rack assembly

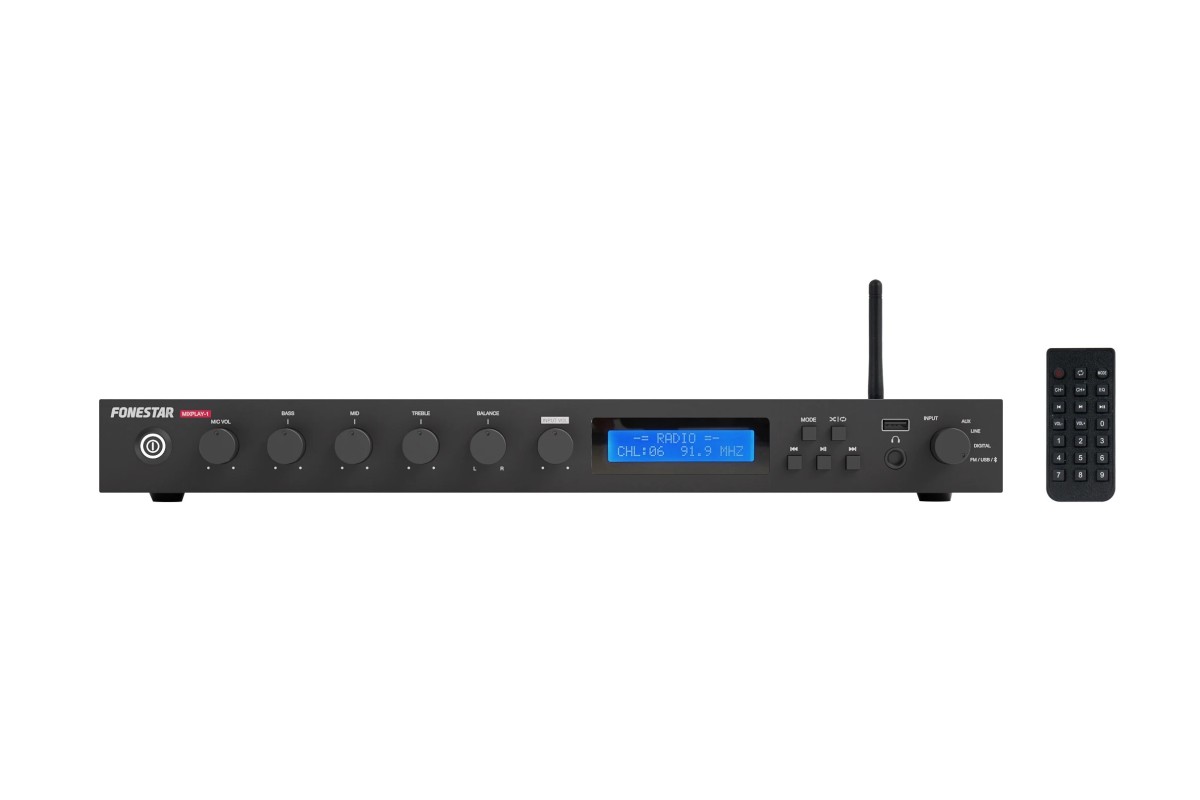

FONETSAR MIXPLAY-1
257,66 €
Tasse incluse
Spedito entro 5/7 Giorni
Bluetooth®/USB/FM player with recorder and mixer function.
☑ Player, recorder and mixer in one device
☑ Great connectivity with audio inputs/outputs
☑ Compact size 1 U rack 19”
☑ User-friendly and intuitive
☑ Remote control and brackets for 19" rack assembly
close
| EATURES: | Bluetooth/USB/FM player. |
|---|---|
| Recording function. | |
| Microphone input mixer with auxiliary or player. | |
| Microphone priority by signal level. | |
| Optical or coaxial digital audio input. | |
| Auxiliary inputs. | |
| 3 x master outputs. | |
| Stereo/mono selector for outputs. | |
| Output for active subwoofer. | |
| Bass, midrange, treble and balance control. | |
| Remote control of the player. | |
| RESPONSE: | 20-20,000 Hz |
| DISTORSION: | THD+N: < 0.1% @ 1 kHz |
| S/N RATIO: | Mic >60 dB |
| Aux >70 dB | |
| INPUTS: | 1 x MIC balanced Micro. Combo (XLR + 6.3 mm) connector. Signal level 30 mV RMS (-30 dBV) / 600 Ω (@ balanced and unbalanced output 1 V RMS) |
| 2 AUX and LINE. 2 x RCA connector. Signal level: 350 mV RMS (-9 dBV) / 47K Ω (@ balanced 1 V RMS output). Signal level: 750 mV RMS (-2.5 dBV) / 47K Ω (@ unbalanced output 1 V RMS) | |
| 1 x digital audio (optical or coaxial). Connectors, TOSLINK and RCA. Priority of the optical input over the coaxial input | |

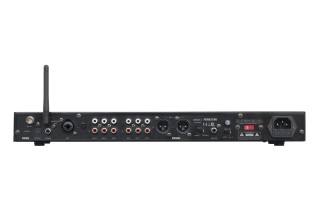

| OUTPUTS: | OUT 1 and OUT 2 unbalanced output. 2 x RCA connectors. Signal level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω |
| OUT 3 balanced output. 2 x XLR connectors. Output level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω | |
| 1 x REC. 2 x RCA connectors. Signal level. 1 V RMS (0 dBV) / 1K5 Ω | |
| 1 x Subwoofer. RCA connector. Signal level: 1 V RMS (0 dBV) / 1K5 Ω | |
| 1 x Headphones. 6.3 mm stereo connector. | |
| FUNCTIONS: | Microphone priority by signal level over all other inputs, level selectable |
| Mono/stereo output selector for OUT 1, OUT 2 and OUT 3 | |
| PLAYER: | Bluetooth/USB/FM player |
| Supported MP3, WMA and WAV files | |
| USB recorder of the microphone mix and AUX or Line inputs (does not record digital audio input) | |
| USB sticks of 64 GB maximum, FAT32 and NTFS format | |
| USB flash drive autoplay, starts playback automatically in USB mode on power-up | |
| Playback mode memory (random, repeat). | |

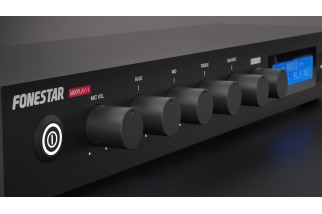

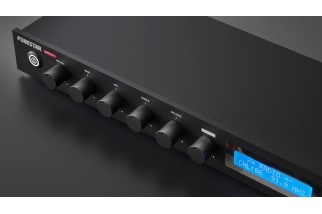

| CONTROLS: | Microphone volume. |
| Input selector or player | |
| Volume of AUX, LINE, DIGITAL and player inputs with balance, bass, mid and treble control | |
| Mono/stereo selector for outputs | |
| Player/recorder controls | |
| GND lift ground disconnection | |
| POWER SUPPLY: | 230/115 V AC, 7 W |
| DIMENSIONS: | 433 x 45 x 155 mm depth. 1 U 19” rack |
| WEIGHT: | 1.9 kg |
| ACCESSORIES: | Remote control of the player. |
| FM antenna | |
| Power cable | |
| Brackets for 19" rack. |
MIXPLAY-1
Riferimenti specifici
- ean13
- 8422521023672
