Features
☑ 1” throat entry
☑ Line Array optimized Waveguide

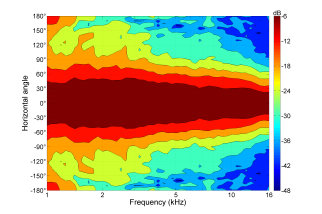

☑ 140° max horizontal coverage

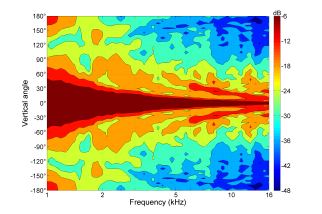

☑ Vertical coverage depends on configuration
☑ Very good loading down to 1 kHz

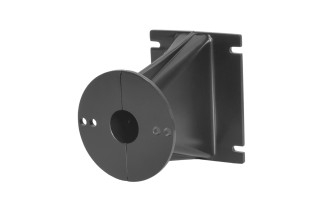

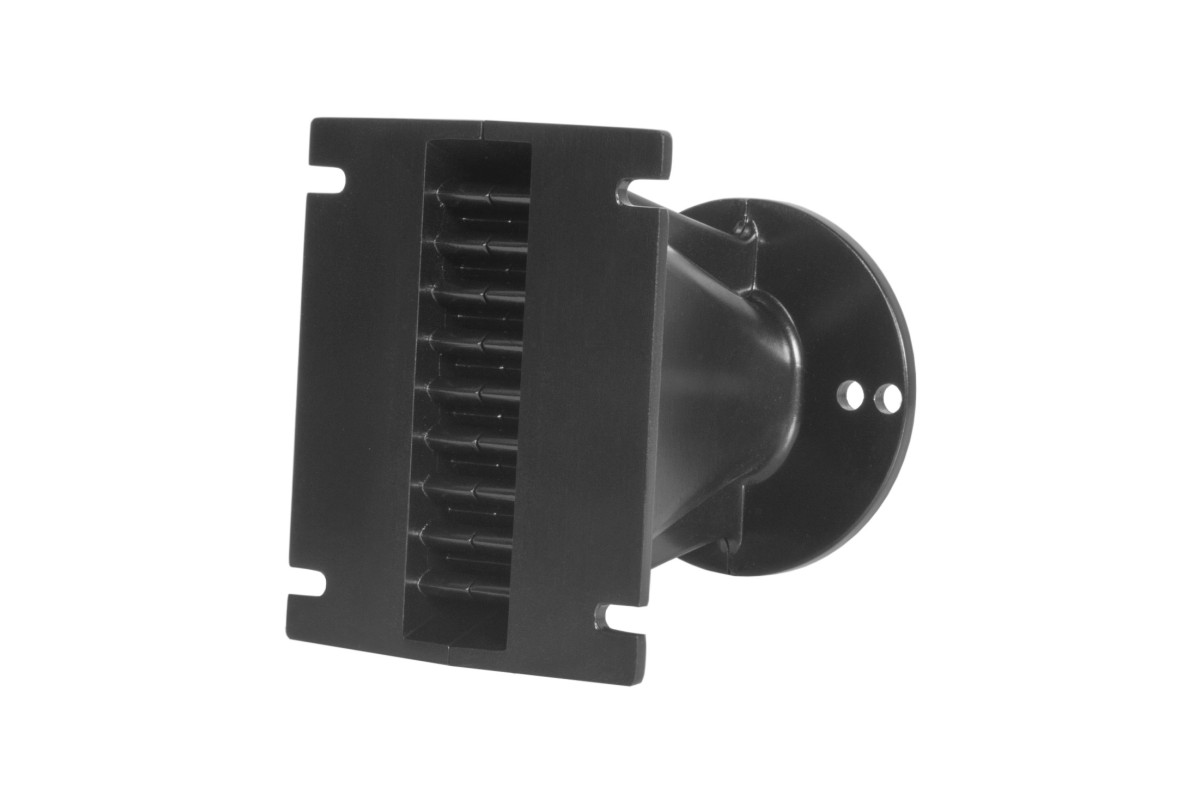

B&C ME102
65,88 €
Tasse incluse
Spedizione 24/48h
Features
☑ 1” throat entry
☑ Line Array optimized Waveguide
☑ 140° max horizontal coverage
☑ Vertical coverage depends on configuration
☑ Very good loading down to 1 kHz
close
| Specifications | |
|---|---|
| Throat Diameter | 25 mm (1 in) |
| Cutoff Frequency | 1 kHz |
| Design | Line Array Optimized Waveguide |
| Nominal Coverage Horizontal | 140 ° |
| Material | Cast Aluminium |
| Dimensions | 110.6x87x111.6 mm (4.35x3.43x4.39 in) |
| Mounting and Shipping Info | |
| Other details | Two 6 mm (0.25 in) holes on 76 mm (3 in) diameter - Two 6 mm (0.25 in) holes on 57.2 mm (2.25 in) diameter |
| Air Volume Occupied by Driver | 0.15 dm³ (0.01 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 165x165x100 mm (6.50x6.50x3.94 in) |
| Baffle Cutout Dimension | 102.4 mm (4.03 in) |
| Net Weight | 0.43 kg (0.95 lb) |
| Shipping Weight | 0.49 kg (1.08 lb) |
TRM102
