Features
☑ 1.4” throat entry
☑ Line Array optimized Waveguide
☑ 120° max horizontal coverage
☑ Vertical coverage depends on configuration
☑ Very good loading down to 800 Hz

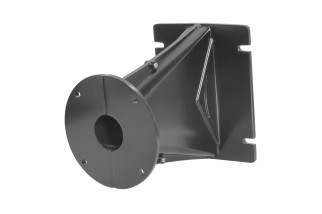

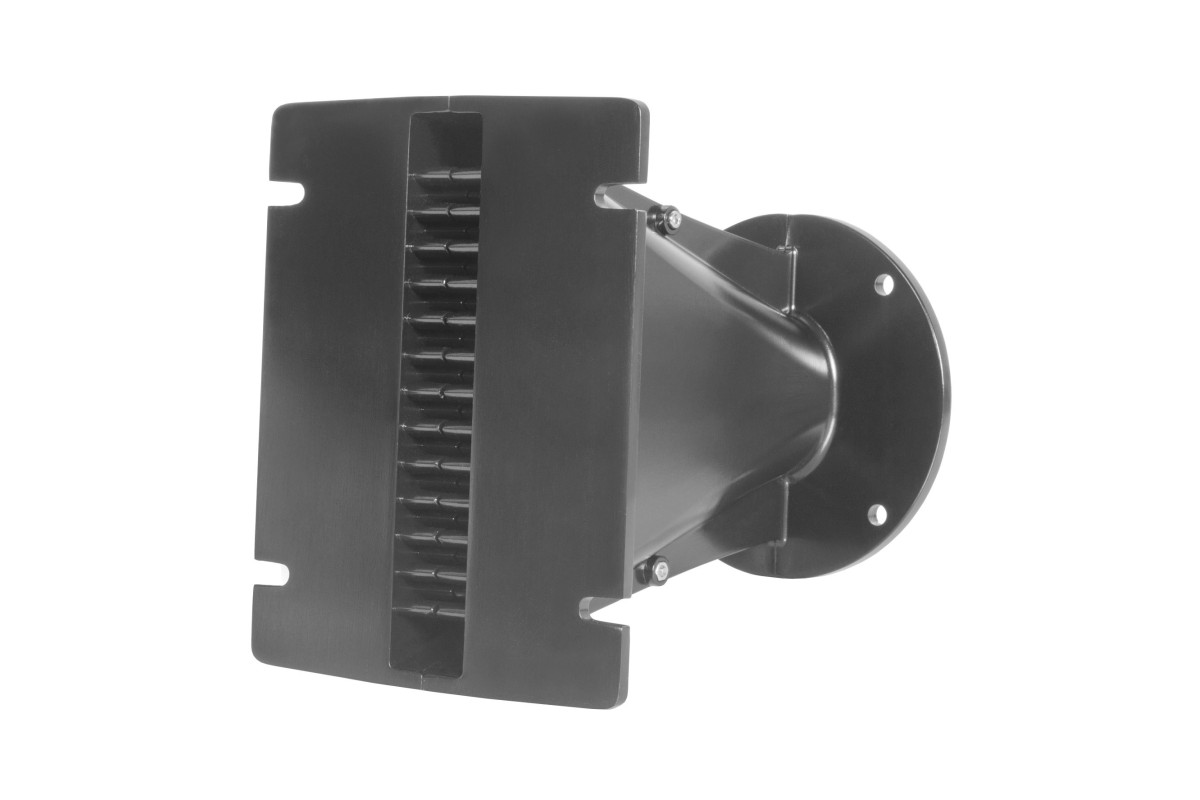

B&C ME142
120,78 €
Tasse incluse
Features
☑ 1.4” throat entry
☑ Line Array optimized Waveguide
☑ 120° max horizontal coverage
☑ Vertical coverage depends on configuration
☑ Very good loading down to 800 Hz
close
| Specifications | |
|---|---|
| Throat Diameter | 36 mm (1.4 in) |
| Cutoff Frequency | 0.8 kHz |
| Design | Line Array Optimized Waveguide |
| Nominal Coverage Horizontal | 120 ° |
| Material | Cast Aluminium |
| Dimensions | 163x130x180 mm (6.42x5.12x7.09 in) |
| Mounting and Shipping Info | |
| Other details | Four 6.5 mm holes at 90° on 102 mm (4 in) diameter |
| Air Volume Occupied by Driver | 0.34 dm³ (0.01 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 190x135x165 mm (7.48x5.31x6.50 in) |
| Baffle Cutout Dimension | 153 mm (6 in) |
| Net Weight | 1.05 kg (2.31 lb) |
| Shipping Weight | 1.15 kg (2.53 lb) |
TRM142
Scheda dati
- Pollici
- 1.4
