| Features |
| ☑ Horn Flare specifically optimized for ME148 |

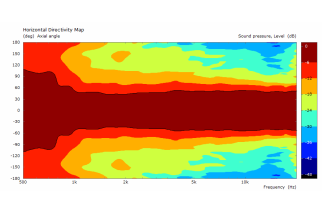

| ☑ 100° horizontal coverage |

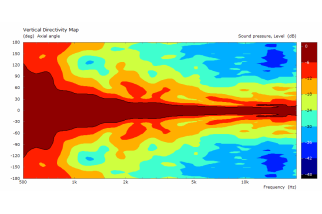

| ☑ Vertical coverage depends on configuration |
| ☑ Very good loading and directivity control down to 700 Hz |
| Specifications | |
|---|---|

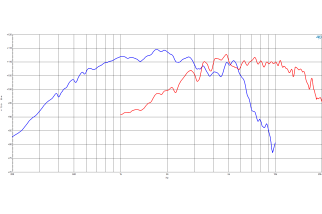

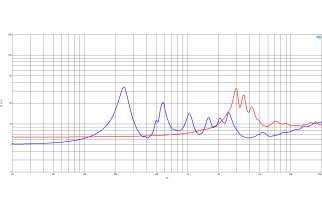

| Frequency response and Impedance measured with | DRV464-8+ME148+HF148 |
| Cutoff Frequency | 0.7 kHz |
| Design | Constant Directivity |
| Nominal Coverage Horizontal | 100 ° |
| Material | PC/ABS/GF blend |

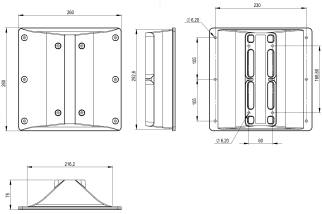

| Dimensions | 260x260x75 mm |
| Mounting and Shipping Info | |
| Net Weight | 0.58 kg (1.28 lb) |
| Shipping Weight | 0.85 kg (1.87 lb) |
| Shipping Units | 1 pcs |
| Shipping Box | 280x270x100 mm |
