Features
☑ 1" throat entry
☑ 90° x 60° nominal coverage
☑ Hyperbolic Cosine Flare
☑ Excellent loading down to 1.5 kHz

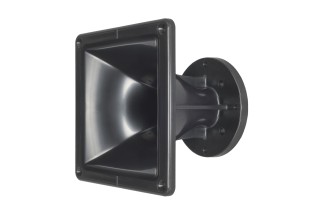

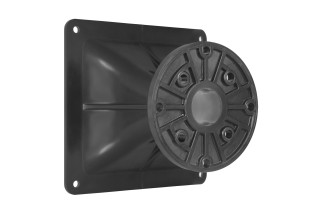

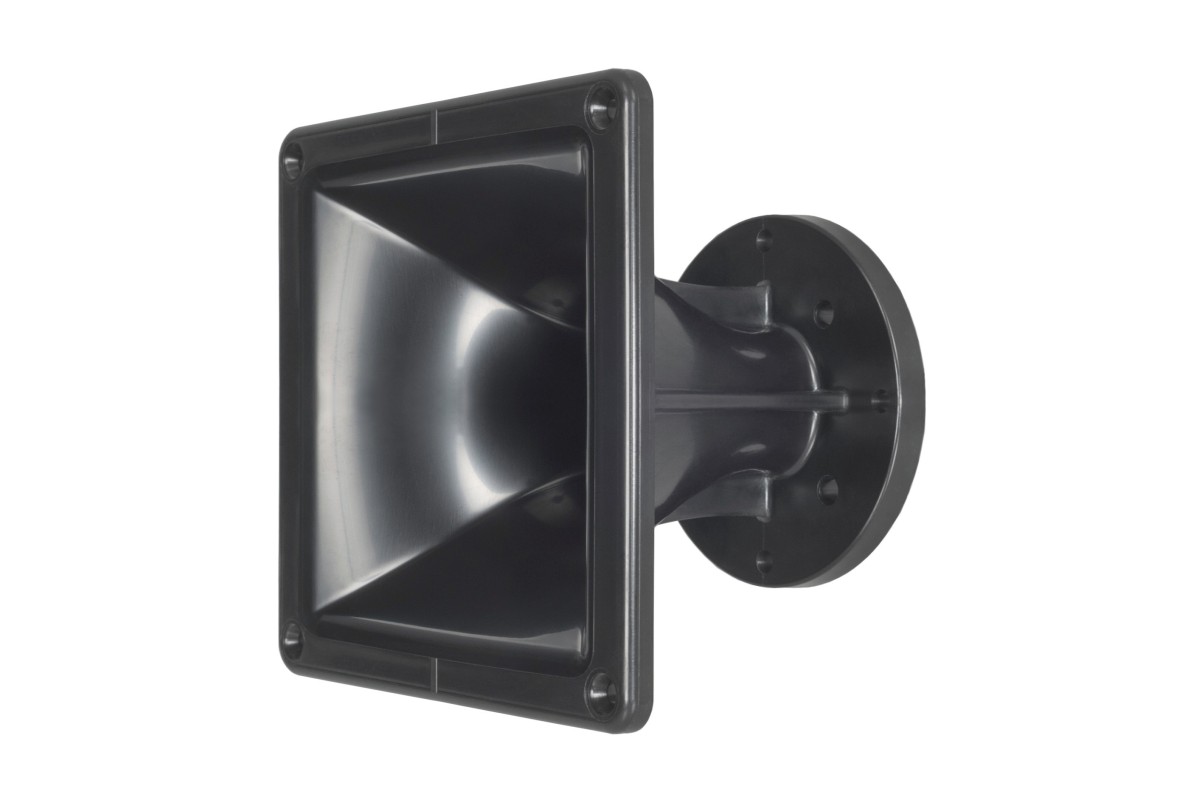

B&C ME10V3
16,84 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1" throat entry
☑ 90° x 60° nominal coverage
☑ Hyperbolic Cosine Flare
☑ Excellent loading down to 1.5 kHz
close
| Specifications | |
|---|---|
| Throat Diameter | 25 mm (1 in) |
| Nominal Coverage Horizontal | 90 ° |
| Nominal Coverage Vertical | 60 ° |
| Cutoff Frequency | 1.5 kHz |
| Material | ABS |
| Design | Hyperbolic Cosine Flare |
| Dimensions | 130.5x130.5x90 mm (5.1x5.1x3.5 in) |
| Mounting and Shipping Info | |
| Driver Mounting | 4x 5.5 mm (0.22 in) holes 90° on 76 mm (3 in) diameter --- 2x 6.3 mm (0.25 in) holes 180° on 57.2 mm (2.26 in) diameter --- 2x 6.3 mm (0.25 in) holes 180° on 53 mm (2.09 in) diameter |
| Baffle Cutout Dimension | 104 mm (4.1 in) |
| Air Volume Occupied by Driver | 0.15 dm³ (0.01 ft³) |
| Net Weight | 0.17 kg (0.37 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 0.23 kg (0.5 lb) |
| Shipping Box | 165x165x100 mm (6.50x6.50x3.94 in) |
TRM010V3
Scheda dati
- Pollici
- 1
