Features
☑ 2 inch throat entry
☑ High damping composite structure
☑ Uniform on-axis and off-axis frequency response
☑ 60° x 40° horizontal and vertical constant coverage
☑ Very low distortion at high sound pressure
☑ Optimized weight thanks to composite material structure

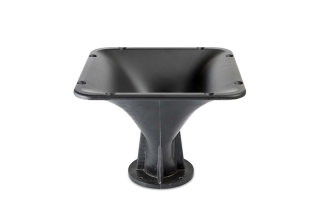

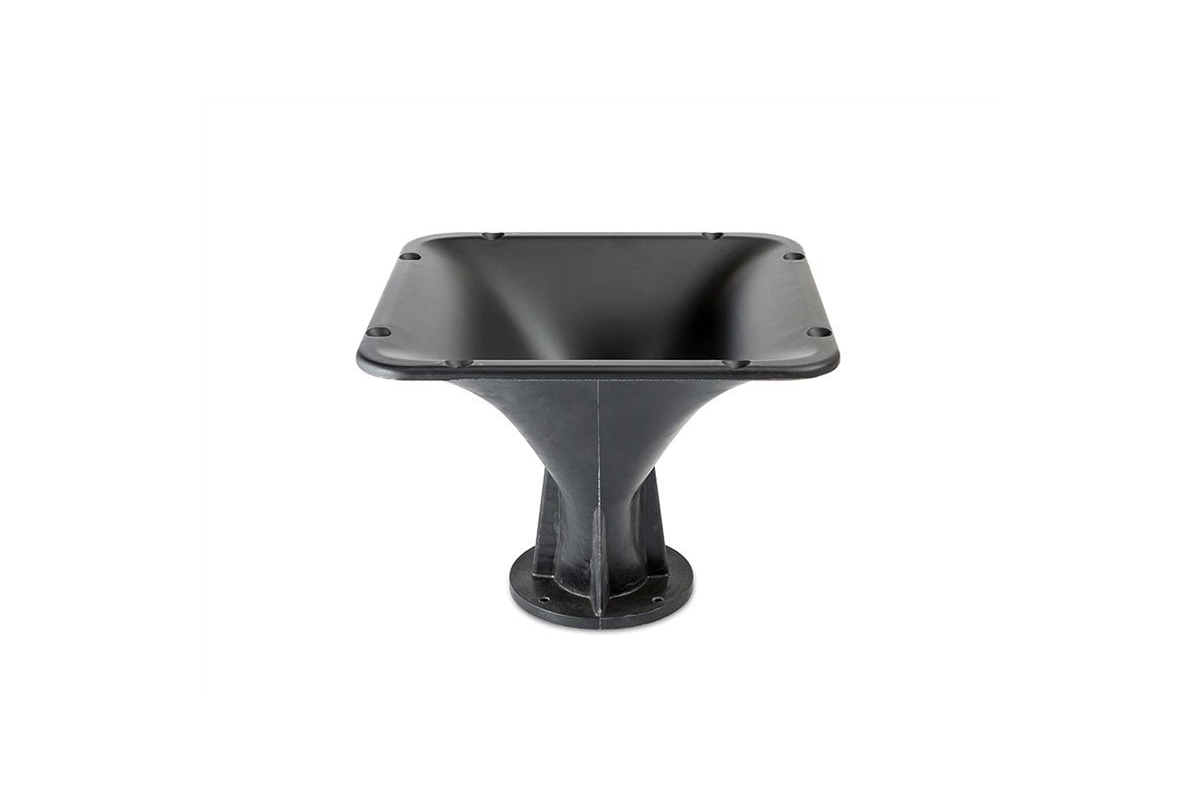

The XR2064C is a constant directivity 2 inch horn. The XR2064C has been developed to reach the optimum performance when coupled to 2 inch exit Eighteen Sound high frequency compression drivers.
All XR series horns have been designed in order to reach smooth driver frequency response, to maintain constant coverage and directivity and eliminating the midrange narrowing and high frequency beaming problems common of many similar horns on the market.

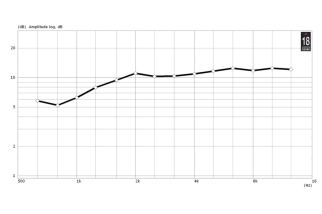

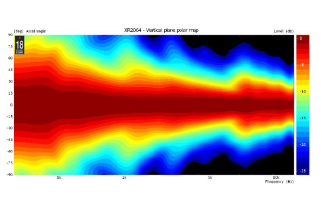

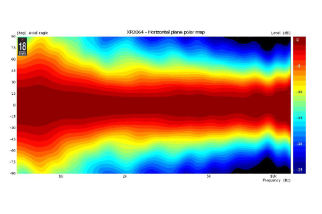

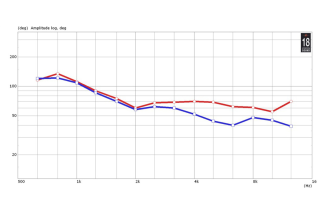

The XR2064C horn maintains nominal 60° Horizontal x 40° Vertical pattern control. It provides consistent on-axis and off-axis frequency response from 1.2kHz to 16kHz in both horizontal and vertical planes. Horn directivity is constant down to 1.2kHz.
18 Sound XR2064C
81,20 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 2 inch throat entry
☑ High damping composite structure
☑ Uniform on-axis and off-axis frequency response
☑ 60° x 40° horizontal and vertical constant coverage
☑ Very low distortion at high sound pressure
☑ Optimized weight thanks to composite material structure
The XR2064C is a constant directivity 2 inch horn. The XR2064C has been developed to reach the optimum performance when coupled to 2 inch exit Eighteen Sound high frequency compression drivers.
All XR series horns have been designed in order to reach smooth driver frequency response, to maintain constant coverage and directivity and eliminating the midrange narrowing and high frequency beaming problems common of many similar horns on the market.
The XR2064C horn maintains nominal 60° Horizontal x 40° Vertical pattern control. It provides consistent on-axis and off-axis frequency response from 1.2kHz to 16kHz in both horizontal and vertical planes. Horn directivity is constant down to 1.2kHz.
close
| Caratteristiche Tecniche | |
|---|---|
| Parametro | Valore |
| Diametro gola | 50 mm (1.97") |
| Copertura orizzontale | 60° |
| Copertura verticale | 40° |
| Frequenza di taglio | 0.8 kHz |
| Materiale | Materiale composito |
| Design | Direttività costante |
| Dimensioni | 270 × 270 × 200 mm |
| Montaggio e Spedizione | |
| Parametro | Valore |
| Foro pannello | 240 × 240 mm |
| Peso netto | 1.6 kg |
| Peso spedizione | 2.16 kg |
TRM2064C00
Scheda dati
- Pollici
- 2
Nuovo
