Features
☑ 1.4 throat inch entry
☑ High damping composite structure
☑ Uniform on-axis and off-axis frequency response
☑ 90° x 60° horizontal and vertical constant coverage
☑ Very low distortion at high sound pressure
☑ Optimized weight thanks to composite material structure
The XR1496C has been designed in order to obtain a smooth frequency response maintaining constant coverage and directivity pattern, and avoiding the midrange narrowing effect as well as high frequency beaming problems.
With a throat entry of 1.4 inch, the XR1496C has been developed to reach the optimum performance when it will coupled with 1.4 inch exit Eighteen Sound high frequency compression drivers.

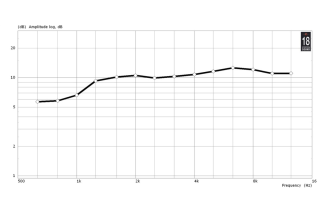

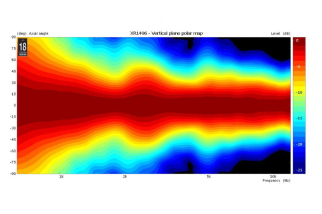

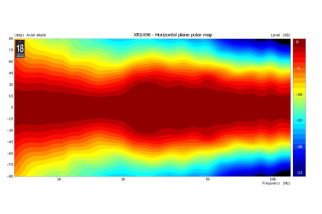

The XR1496C maintains nominal 90° Horizontal x 60° Vertical pattern control, providing consistent on-axis and off-axis frequency response from 1,2kHz to 16kHz in both horizontal and vertical planes.

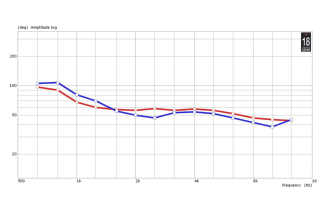

Horn directivity is constant down to 1,2kHz.

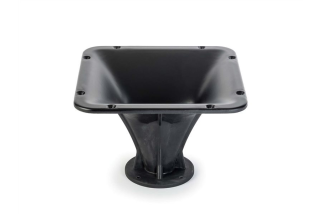

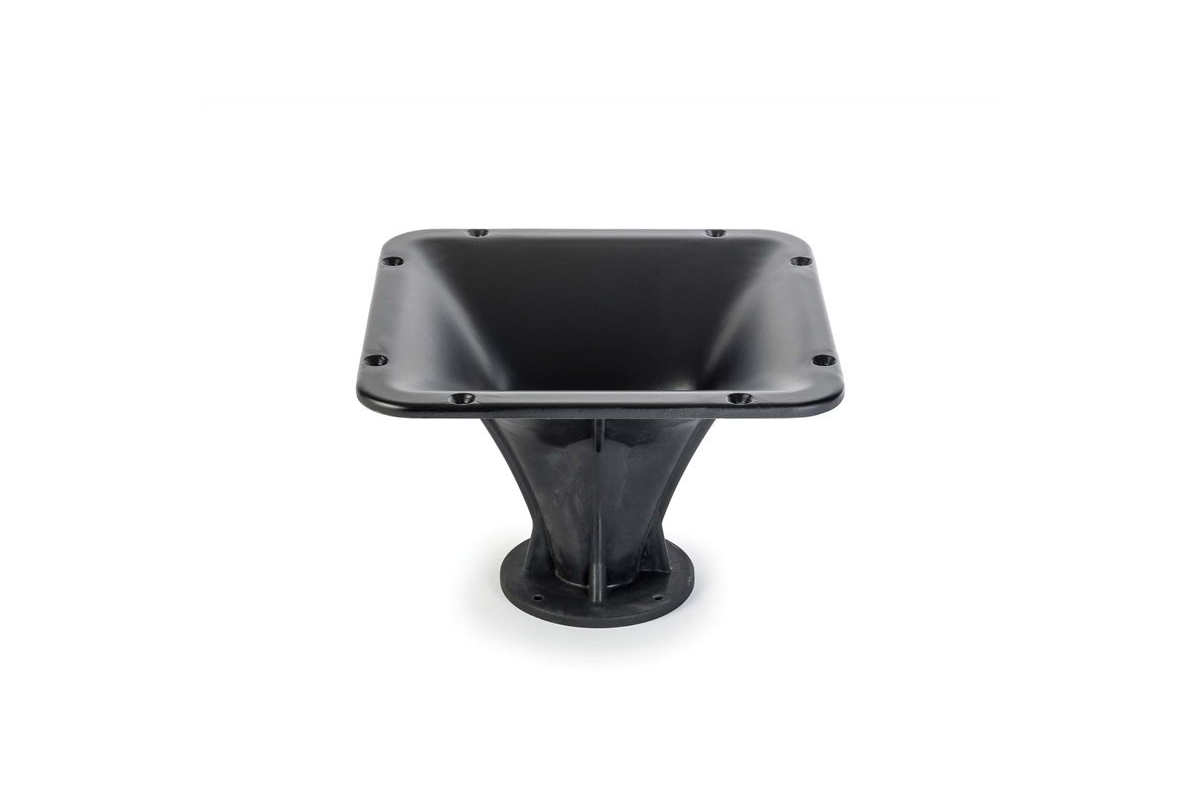

18 Sound XR1496C
79,64 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1.4 throat inch entry
☑ High damping composite structure
☑ Uniform on-axis and off-axis frequency response
☑ 90° x 60° horizontal and vertical constant coverage
☑ Very low distortion at high sound pressure
☑ Optimized weight thanks to composite material structure
The XR1496C has been designed in order to obtain a smooth frequency response maintaining constant coverage and directivity pattern, and avoiding the midrange narrowing effect as well as high frequency beaming problems.
With a throat entry of 1.4 inch, the XR1496C has been developed to reach the optimum performance when it will coupled with 1.4 inch exit Eighteen Sound high frequency compression drivers.
The XR1496C maintains nominal 90° Horizontal x 60° Vertical pattern control, providing consistent on-axis and off-axis frequency response from 1,2kHz to 16kHz in both horizontal and vertical planes.
Horn directivity is constant down to 1,2kHz.
close
| Caratteristiche Tecniche | |
|---|---|
| Parametro | Valore |
| Diametro gola | 35 mm (1.4") |
| Copertura orizzontale | 90° |
| Copertura verticale | 60° |
| Frequenza di taglio | 0.8 kHz |
| Materiale | Materiale composito |
| Design | Direttività costante |
| Dimensioni | 270 × 270 × 180 mm |
| Montaggio e Spedizione | |
| Parametro | Valore |
| Foro pannello | 240 × 240 mm |
| Peso netto | 1.4 kg |
TRM1496C00
Scheda dati
- Pollici
- 1.4
Nuovo
