Features
☑ 4000 W continuous program power capacity
☑ 116 mm (4.5 in) four layer aluminum voice coil
☑ 30 - 1000 Hz response
☑ 96.7 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion

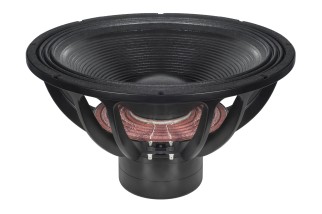

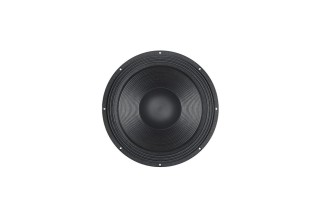

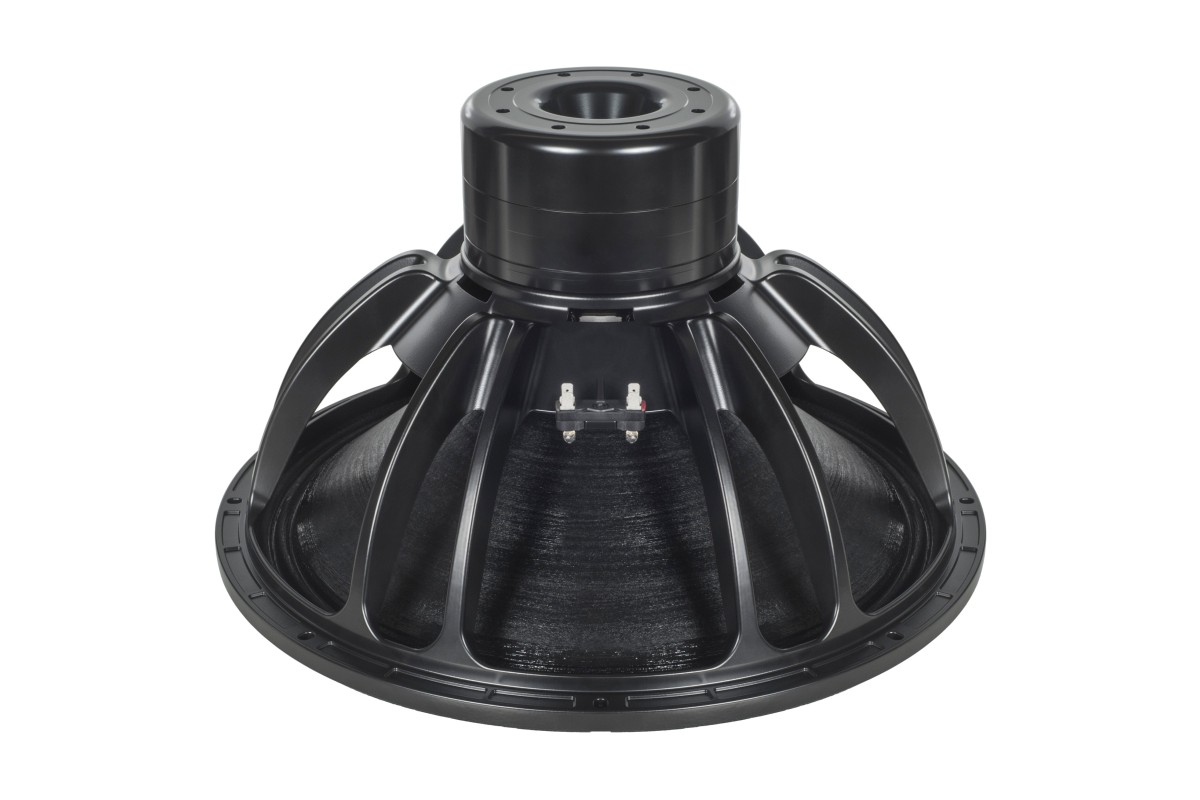

B&C 19RS115 Subwoofer 19"
Features
☑ 4000 W continuous program power capacity
☑ 116 mm (4.5 in) four layer aluminum voice coil
☑ 30 - 1000 Hz response
☑ 96.7 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
close
| Specifications | Nominal Diameter | 483 mm (19 in) |
|---|---|---|
| Nominal Impedance | 8 Ω | |
| Minimum Impedance | 6.5 Ω | |
| Nominal Power Handling | 2000 W | |
| Continuous Power Handling | 4000 W | |
| Sensitivity | 96.7 dB | |
| Frequency Range | 30 Hz - 1000 Hz | |
| Voice Coil Diameter | 116 mm (4.5 in) | |
| Winding Material | Aluminium | |
| Former Material | Glass Fibre | |
| Winding Depth | 54 mm (2.13 in) | |
| Magnetic Gap Depth | 14 mm (0.55 in) | |
| Flux Density | 0.9 T | |
| Woofer Cone Treatment | TWP Waterproof Both Sides | |
| Nominal Diameter | 483 mm (19 in) | |
| Minimum Impedance | 6.5 Ω | |
| Continuous Power Handling | 4000 W | |
| Frequency Range | 30 Hz - 1000 Hz | |
| Winding Material | Aluminium | |
| Winding Depth | 54 mm (2.13 in) | |
| Flux Density | 0.9 T | |
| Nominal Impedance | 8 Ω | |
| Nominal Power Handling | 2000 W | |
| Sensitivity | 96.7 dB | |
| Voice Coil Diameter | 116 mm (4.5 in) | |
| Former Material | Glass Fibre | |
| Magnetic Gap Depth | 14 mm (0.55 in) | |
| Parameters | Woofer Cone Treatment | TWP Waterproof Both Sides |
| Fs | 29 Hz | |
| Re | 4.6 Ω | |
| Qes | 0.21 | |
| Qms | 6.2 | |
| Qts | 0.2 | |
| Vas | 197 dm³ (6.96 ft³) | |
| Sd | 1450 cm² (224.75 in²) | |
| η0 | 2.3 % | |
| Xmax | 23.5 mm | |
| Xvar | 19 mm | |
| Mms | 447 g | |
| Bl | 42 Tm | |
| Le | 4.1 mH | |
| EBP | 138 Hz | |
| Fs | 29 Hz | |
| Qes | 0.21 | |
| Qts | 0.2 | |
| Sd | 1450 cm² (224.75 in²) | |
| Xmax | 23.5 mm | |
| Mms | 447 g | |
| Le | 4.1 mH | |
| Re | 4.6 Ω | |
| Qms | 6.2 | |
| Vas | 197 dm³ (6.96 ft³) | |
| η0 | 2.3 % | |
| Xvar | 19 mm | |
| Bl | 42 Tm | |
| Design | EBP | 138 Hz |
| Surround Shape | Triple Roll | |
| Cone Shape | Straight | |
| Magnet Material | Neodymium Inside Slug | |
| Spider | Double Silicone | |
| Pole Design | T-Pole | |
| Woofer Cone Treatment | TWP Waterproof Both Sides | |
| Surround Shape | Triple Roll | |
| Magnet Material | Neodymium Inside Slug | |
| Pole Design | T-Pole | |
| Cone Shape | Straight | |
| Spider | Double Silicone | |
| Mounting and Shipping Info | Woofer Cone Treatment | TWP Waterproof Both Sides |
| Overall Diameter | 494 mm (19.45 in) | |
| Bolt Circle Diameter | 476 mm (18.74 in) | |
| Baffle Cutout Diameter | 455 mm (17.91 in) | |
| Depth | 285 mm (11.22 in) | |
| Flange and Gasket Thickness | 13 mm (0.51 in) | |
| Net Weight | 15.8 kg (34.83 lb) | |
| Overall Diameter | 494 mm (19.45 in) | |
| Baffle Cutout Diameter | 455 mm (17.91 in) | |
| Flange and Gasket Thickness | 13 mm (0.51 in) | |
| Bolt Circle Diameter | 476 mm (18.74 in) | |
| Depth | 285 mm (11.22 in) | |
| Net Weight | 15.8 kg (34.83 lb) |
