Features & Benefits
☑ Male connector with improved locking recess without "window", more stringent housing increases durability
☑ Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
☑ Boot with polyurethane gland gives high protection to cable bending stresses
☑ Colored rings and boots available for coding or identification
☑ Sleek and ergonomic design - valuable and handy
☑ Rugged zinc diecast shell, longlasting and dependable
☑ Internal thread on shell is well protected against any damage

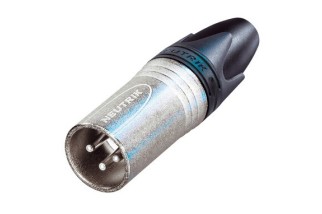

Neutrik NC3MXX
8,00 €
Tasse incluse
Spedizione 24/48h
Features & Benefits
☑ Male connector with improved locking recess without "window", more stringent housing increases durability
☑ Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
☑ Boot with polyurethane gland gives high protection to cable bending stresses
☑ Colored rings and boots available for coding or identification
☑ Sleek and ergonomic design - valuable and handy
☑ Rugged zinc diecast shell, longlasting and dependable
☑ Internal thread on shell is well protected against any damage
close
| Technical Information | |
|---|---|
| Product | |
| Title | NC3MXX |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
| Boot | Polyurethan |
| Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA66) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
